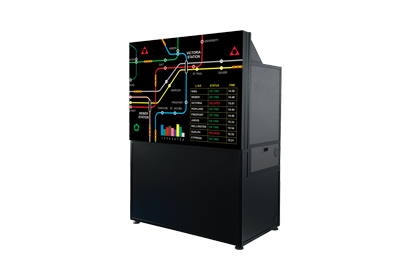

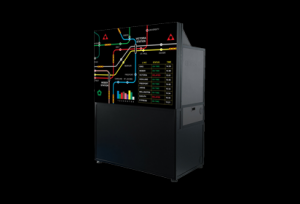

Christie Entero HB 70” HD display cube

dostępność:

producent: Christie

Cena:

Pobierz kartę produktu »

Opis
Dane techniczne
Informacje
W komplecie
Kalkulator projekcji

Christie^® Entero™ HB is an evolution in performance, reliability and confidence for control room video wall displays.

Performance – Leading the progression to higher brightness LED displays, Christie has developed Christie Entero HB – the newest generation of high-performance, high-brightness display wall cubes. With the most advanced LED display system design and Christie’s quality, service and support, Christie Entero HB offers the highest brightness, 24/7 performance, reliability, all with an overall low cost of ownership and operation.

Control – The Christie Entero HB series is the first and only LED control room display to offer wireless control through Wi-Fi capability – make adjustments, control the wall or perform diagnostic monitoring through an iPad^® or other similar wireless device. It’s that simple.

Flexibility – The Christie Entero HB 70” HD video wall display cube, is part of a new expanded series of control room display cubes offering installation flexibility with options in resolution and display formats to meet specific room or space requirements. The Christie Entero HB 70” HD video wall display cube is an excellent option for installations that need true HD LED display cubes in a 70” 16:9 form factor.

Maintenance – Designed for zero maintenance, the Christie Entero HB series is solid state, has no consumables and no scheduled maintenance for at least 5 years.

The Christie Entero HB offers the highest brightness on the market, unparalleled 24/7 performance and years of worry-free operation. Plus, with simple, intuitive hardware installation, minimal setup time and effort and modular design for fast and easy servicing if required, the new Christie Entero™ HB control room display cubes exceeds your expectations.

Features

>900 lumens – normal mode / >1350 lumens – high brightness mode
70” (1778mm) diagonal, HD (1920 x 1080) resolution
high performance – high brightness, wide colour gamut, superb contrast, excellent brightness and white level uniformity
Wi-Fi enabled – wireless video wall control through iPad or similar wireless device
Christie ArraySync™ third-generation automatic LED video wall colour and brightness management
24/7 reliability – based on latest DLP^{^®} technology
Zero maintenance design – no consumables, no maintenance for at least 5 years
Low cost of ownership/operation
Shallow 808mm (31.8") depth requires minimal space allocation for 70” displays
Industry standard 16:9 aspect ratio
Only 1mm nominal space between screens
Geometric precision for seamless imaging across multiple displays
Reduced disruption because there are no consumable components to replace
Very wide colour gamut for superior colour reproduction
Ultra high contrast, view-ability and display performance
Designed for long-term use and performance – no need to replace in a few years
>80,000 hours rated LED life (eco mode)
Modular design for minimal downtime if a repair is required
Dust free sealed optics
Permanently sealed liquid cooling system (no pumps or hazardous liquids)

Product make-up	Cube CC70-3601 Projection engine RPMHD-LED02 Screen¹ SC70-XP01
Imaging technology	Imaging Superior 0.95" 1-chip DLP^®, DarkChip Texas Instruments Native resolution HD (1920 x 1080) \| 16:9 aspect ratio Illumination LED (Red, Green, Blue) \| OSRAM \| Redundant LED Architecture
Cross prism screen	Technology optical: Fresnel/cross prism DNP Screen gap (image to image)² 0.2-1.0mm adjustable 1mm nominal recommended for rear access @25°C View-ability 180° Horizontal 120° Vertical +/- 35° Horizontal ½ gain +/- 27° Vertical ½ gain
Light engine (ANSI)	ANSI Up to 1350 lumens in high brightness mode 950 lumens in normal mode 740 lumens in eco mode Control manual and continuous automatic (ArraySync) control to manage brightness uniformity across large display walls
Colour	Temperature range 3200°K to 9300°K Gamut wider than EBU White balance uniformity 0.0035 ∆u’ ∆v’ Control ArraySync™ automatic color management with 12-bit processing to precisely and continuously manage uniformity across large display walls without user intervention precise tri-stimulus color sensing (x,y,z) for superior color management display light engine is factory calibrated using scientific-grade spectral radiometers for high precision color management comprehensive controls for manual setup if desired
Optical	Lens type 0.64:1 low distortion, zero offset 1.1:1 HD low distortion, zero offset Brightness uniformity >95% Contrast ratio up to 2200:1 full field without using dynamic or artificial techniques
Audible noise	Noise power level <30 dBA typical at 1 metre distance from screen centre
Inputs	Standard 1 x digital DVI-D 165 MHz maximum pixel clock frequency single link DVI loop-through up to 25 displays on a single loop-through chain HDCP support included (operating at native resolution) Optional expansion secondary DVI-D input with automatic fail detection and switch over Compatibility all Christie video wall processors and other standard SXGA+ and HD sources
Control/networking	Methods IR full function remote keypad external computer or control device via Wi-Fi and/or Ethernet and/or RS-232 (Wi-Fi can be disabled with no radio frequency transmission if required) Physical ports 1 x RS-232 2 x Ethernet RJ45 Ethernet bridging (daisy chain) limit up to 25 Ethernet bridges, projector to projector without external switch
Monitoring	Status display 2 line by 16 character OLED display Diagnostics via status display, RS-232 and Ethernet/Wi-Fi (can be disabled with no radio frequency transmission, if required)
Upgradability	Software/fireware fast, on site firmware upgrades via USB, Ethernet or RS-232
Options	Accessories secondary DVI-D input module cube pedestals
Physical characteristics	Screen size (in.) 61.1” x 34.4” Screen size (mm) 1551 x 873mm Cube depth (total) 35.83” (910mm) Weight - cube 221bs (100kg) Weight - engine 55lbs (25kg) Weight - screen 78 lbs (35.4kg) Stacking capability³ 5 cubes high Service access rear light weight rear access panels
Environment	Operating temperature cube: 40° to 90°F, 5° to 35°C engine: 32° to 104°F, 0° to 40°C screen: 63° to 88°F, 17° to 31°C Non-operating temperature cube: -4° to 122°F, -20° to 50°C engine: -13° to 158°F, -25° to 70°C screen: -4° to 95°F, -20° to 35°C Humidity cube/engine: 20% to 80% NC, 35% to 65% NC for storage screen: 40% to 60% NC Altitude 0 to 3,000m, 0 to 10,000 feet
Power rating (core engine only)	Voltage range 100-240V AC 50/60Hz Power consumption 135W/190W/220W watts (eco/normal/high brightness) Dissipation 460/648/750 BTU/hr (eco/normal/high brightness)
Reliability and serviceability	MTBF/MTTR MTBF: >60,000 hours for all major modules 76,000 hrs for power supply MTTR: <15 minutes via modular servicing Cooling fan lifetime >100,000 hours LED lifetime >80,000 hours in eco mode >60,000 hours in normal operating mode
Regulatory (core engine only)	Directives/certifications (EC) 2011/65/EU (RoHS) 2012/19/EU (WEEE) Regulation (EC) No. 1907/2006 (REACH) CAN/CSA C22.2 No. 60950-1 UL 60950-1 IEC 60950-1 FCC, Part 15, Subpart B, Class A ICES/NMB003 (A) EN55022/CISPR22 Class A EN55024/CISPR24 The product is designed to comply with rules and regulations required for the product to be sold in various regional markets, including: USA/Canada, EU, Australia/New Zealand, Kuwait, China, Korea, Japan, Mexico, Ukraine, India, Russia, South Africa, and Saudi Arabia
Warranty	two years parts and labour limited warranty extended warranty available
Addtional features and benefits	Integrated 6-axis adjustment system – no electronic image correction required Tiling feature to display a single source across a wall array (to 25 displays) DVI loop through minimises cabling Multiple Ethernet ports minimise cabling Safe, water-filled, maintenance free, metal sealed heat pipe cooling system ensures long LED lifetime and reliability No liquid cooling pumps containing hazardous liquids and requiring annual maintenance/inspection nor hazardous waste disposal Cable channeling system enables clean, professional and concealed cabling of all input, power and interconnect cables within the cubes

¹Other screen types available.
²Depending on environment and wall configuration.
³Depending on pedestal type used.
