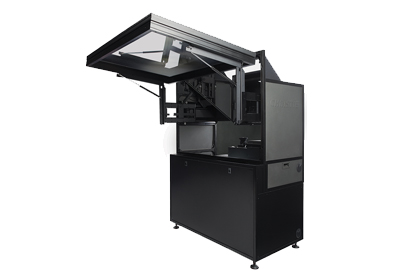

Christie Entero HB 70” HD front access display cube CF70-4001

dostępność:

producent: Christie

Cena:

Pobierz kartę produktu »

Opis
Dane techniczne
Informacje
W komplecie
Kalkulator projekcji

Christie^® Entero^™ HB is an evolution in performance, reliability and confidence for control room video walls.

Performance – Leading the progression to higher brightness LED displays, Christie has developed Christie Entero HB – the newest generation of high-performance, high-brightness display wall cubes. With the most advanced LED display system design and Christie’s quality, service and support, Christie Entero HB offers the highest brightness, 24/7 performance, reliability, with a low total cost of ownership and operation.

Control – The Christie Entero HB Series is the first, and only, LED control room display to offer wireless control through Wi-Fi^® capability. You can make adjustments, control the wall or perform diagnostic monitoring through an iPad^® or other similar wireless device. It’s that simple.

Flexibility – The Christie Entero HB 70” HD front access video wall cube further expands the Entero HB Series of control room display cubes, offering installation flexibility with front-access and a smart airflow design for placement directly against walls, along with resolution and display formats to meet specific room or space requirements. The Christie Entero HB 70” HD front access video wall cube is an excellent option for installations that need true HD LED display cubes in a 70” (1778mm) 16:9 form factor.

Maintenance – Designed for zero-maintenance, the Christie Entero HB series is solid-state, has no consumables and no scheduled maintenance for at least 5 years. The front access design provides a remote control release-and-lift system for the screen and a motorised, 6-axis adjustment system for easy access, no matter where the cube is placed within a video wall.

Features

Normal mode: >900 lumens; high-brightness mode: >1350 lumens
70” (1778mm) diagonal, HD (1920 x 1080) resolution
High performance – high-brightness, wide colour gamut, superb contrast and excellent white level uniformity
Wi-Fi enabled – wireless video wall control through iPad or similar wireless device
Christie ArraySync^™ third-generation, automatic LED video wall colour and brightness management
24/7 reliability – based on latest DLP^® technology
Zero-maintenance design – no consumables, no maintenance for at least 5 years
Low total cost of ownership/operation
Shallow 1009mm (39.7”) depth and smart airflow design allows cubes to be placed directly against walls
Industry standard 16:9 aspect ratio
Only 0.2 to 1.7mm nominal space between screens with front-access design
Geometric precision for seamless imaging across multiple displays
Reduced disruption because there are no consumable components to replace
Ultra-high contrast and display performance
>80,000 hours rated LED life (eco mode)
Modular design for minimal downtime if a repair is required
Dust-free sealed optics
Permanently-sealed liquid cooling system (no pumps or hazardous liquids)

Product make-up	Cube CF70-4001 Projection engine RPMHD-LED02 Screen¹ SC70-XP01
Imaging technology	Imaging Superior 0.95" 1-chip DLP^®, DarkChip Texas Instruments Native resolution HD (1920 x 1080) \| 16:9 aspect ratio Illumination LED (Red, Green, Blue) \| OSRAM \| Redundant LED Architecture
Cross prism screen	Technology optical: Fresnel/cross prism DNP Screen gap (image to image)² 0.2-1.7mm adjustable 1.7mm nominal recommended for front access @ 25°C View-ability 180° Horizontal 120° Vertical +/- 35° Horizontal ½ gain +/- 27° Vertical ½ gain
Brightness	ANSI Up to 1100 lumens in high brightness mode 900 lumens in normal mode 700 lumens in eco mode Control Manual and continuous automatic (ArraySync)control to manage brightness uniformity across large display walls
Colour	Temperature range 3200°K to 9300°K Gamut wider than EBU White balance uniformity 0.0035 ∆u’ ∆v’ Control ArraySync™ automatic colour management with 12-bit processing to precisely and continuously manage uniformity across large display walls without user intervention Precise tri-stimulus colour sensing (x,y,z) for superior colour management Display light engine is factory calibrated using scientific-grade spectral radiometers for high precision colour management Comprehensive controls for manual setup if desired
Optical	Brightness uniformity >95% Contrast ratio up to 2200:1 full field without using dynamic or artificial techniques
Audible noise	Noise power level <30 dBA typical at 1 metre distance from screen centre
Inputs	Standard 1 x digital DVI-D 165MHz maximum pixel clock frequency single link DVI loop-through capability up to 25 displays on a single loop-through chain HDCP support included (operating at native resolution) Optional expansion secondary DVI-D input with automatic failure detection and switch over Thinklogical direct fibre input card Compatibility all Christie video wall processors and most standard sources
Control/networking	Methods IR full function remote keypad external computer or control device via Wi-Fi and/or Ethernet and/or RS-232 Wi-Fi (can be disabled with no radio frequency transmission if required) Physical ports 1 x RS-232 2 x Ethernet RJ45 Ethernet bridging (daisy chain) limit up to 25 Ethernet bridges, projector to projector without external switch
Monitoring	Status display 2 line by 16 character OLED display Diagnostics via status display, RS-232 and Ethernet/Wi-Fi (can be disabled with no radio frequency transmission if required)
Upgradability	Software/fireware Fast, on site firmware upgrades via USB, Ethernet or RS-232
Options	Accessories full function IR remote keypad secondary DVI-D input module Thinklogical direct fiber input card cube pedestals alternate screen types motorised 6-axis accessory required
Physical characteristics	Screen size (in.) 61.1” x 34.4” Screen size (mm) 1551 x 873mm Cube depth (total) 39.7” (1009mm) Weight - cube 220lbs (100kg) Weight - screen 66lbs (30kg) Weight - engine 55lbs (25kg) Cube stacking limit³ 5 cubes high Service access rear light weight rear access panels remote control release-and-lift screen system
Environment	Operating temperature cube: 40° to 90°F, 5° to 35°C engine: 32° to 104°F, 0° to 40°C screen: 63° to 88°F, 17° to 31°C Non-operating temperature cube: -4° to 122°F, -20° to 50°C engine: -13° to 158°F, -25° to 70°C screen: -4° to 95°F, -20° to 35°C Humidity cube/engine: 20% to 80% NC, 35% to 65% NC for storage screen: 40% to 60% NC Altitude 0 to 3,000m, 0 to 10,000 feet Seismic the CC80-3601 cube system, up to a stack height of 5, meets the loading and stability requirements of the BOCA National Building Code under seismic forces associated with Zone 4 seismic activity. Note: Tiebacks and/or concrete anchors are required to achieve this rating.
Power rating (projection engine)	Voltage range 100-240V AC 50/60Hz 4.3A Power consumption 250W/210W/150W watts (high brightness/normal/eco) Dissipation 853/717/529 BTU/hr (high brightness/normal/eco)
Reliability and serviceability	MTBF/MTTR MTBF: >60,000 hours for all major modules 76,000 hrs for power supply MTTR: <15 minutes via modular servicing Cooling fan lifetime >100,000 hours LED lifetime >80,000 hours in eco mode >60,000 hours in normal operating mode
Regulatory (projection engine)	Directives/certifications (EC) 2011/65/EU (RoHS) 2012/19/EU (WEEE) Regulation (EC) No. 1907/2006 (REACH) CAN/CSA C22.2 No. 60950-1 UL 60950-1 IEC 60950-1 FCC, Part 15, Subpart B, Class A ICES/NMB003 (A) EN55022/CISPR22 Class A EN55024/CISPR24 The product is designed to comply with rules and regulations required for the product to be sold in various regional markets, including: USA/Canada, EU, Australia/New Zealand, Kuwait, China, Korea, Japan, Mexico, Ukraine, India, Russia, South Africa, and Saudi Arabia
Warranty	Two years parts and labour limited warranty Extending warranties available
Addtional features and benefits	Integrated 6-axis adjustment system – no electronic image correction required Full-function remote keypad with easy-to-use menu system Tiling feature for scaling a single source across a wall array (up to 25 displays) DVI loop-through minimises cabling Multiple Ethernet ports minimize cabling Safe, water-filled, maintenance free, metal sealed heat pipe cooling system ensures long LED lifetime and reliability No liquid cooling pumps containing hazardous liquids and requiring annual maintenance/inspection nor hazardous waste disposal Cube cable channelling system enables clean, professional and concealed cabling of all input, power and interconnect cables within the cubes

¹Other screen types available.
²Depending on environment and wall configuration.
³Depending on pedestal type used.
