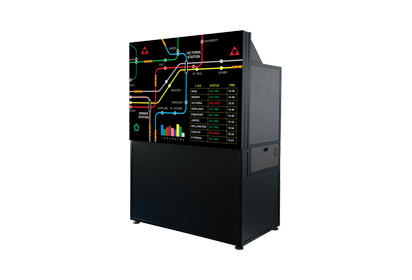

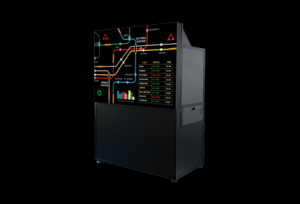

| Product make-up |
- Cube
- Projection engine
- Screen1
|
| Imaging technology |
- Imaging
- Superior 0.95" 1-chip DLP®, DarkChip
- Texas Instruments
- Native resolution
- SXGA+ (1400 x 1050) | 4:3 aspect ratio
- Illumination
- LED (Red, Green, Blue) | OSRAM | Redundant LED Architecture
|
| Cross prism screen |
- Technology
- optical: Fresnel/cross prism
- DNP
- Screen gap (image to image)2
- 0.2-1.0mm
- adjustable
- 1mm nominal recommended for rear access @25°C
- View-ability
- 180° Horizontal
- 120° Vertical
- +/- 35° Horizontal ½ gain
- +/- 27° Vertical ½ gain
|
| Light engine (ANSI) |
- ANSI
- Up to 1100 lumens in high brightness mode
- 950 lumens in normal mode
- 740 lumens in eco mode
- Control
- manual and continuous automatic (ArraySync) control to manage brightness uniformity across large display walls
|
| Colour |
- Temperature range
- Gamut
- White balance uniformity
- Control
- ArraySync™ automatic colour management with 12-bit processing to precisely and continuously manage uniformity across large display walls without user intervention
- precise tri-stimulus colour sensing (x,y,z) for superior color management
- display light engine is factory calibrated using scientific-grade spectral radiometers for high precision colour management
- comprehensive controls for manual setup if desired
|
| Optical |
- Lens type
- 0.69:1 low distortion, zero offset
- Brightness uniformity
- Contrast ratio
- up to 2100:1 full field without using dynamic or artifical techniques
|
| Audible noise |
- Noise power level
- <30 dBA typical at a 1 metre distance from screen centre
|
| Inputs |
- Standard
- 1 x digital DVI-D
- 165 MHz maximum pixel clock frequency
- single link
- DVI loop-through capability
- up to 25 displays on a single loop-through chain
- HDCP support
- included (operating at native resolution)
- Optional expansion
- secondary DVI-D input with automatic fail detection and switch over
- Compatibility
- all Christie video wall processors and other standard SXGA+ sources
|
| Control/networking |
- Methods
- IR full function remote keypad
- external computer or control device via Wi-Fi and/or Ethernet and/or RS-232
- (Wi-Fi can be disabled with no radio frequency transmission, if required)
- Physical ports
- 1 x RS-232
- 2 x Ethernet RJ45
- Ethernet bridging (daisy chain) limit
- up to 25 Ethernet bridges, projector to projector without external switch
|
| Monitoring |
- Status display
- 2 line by 16 character OLED display
- Diagnostics
- via status display, RS-232 and Ethernet/Wi-Fi (can be disabled with no radio frequency transmission, if required)
|
| Upgradability |
- Software/fireware
- fast, on site firmware upgrades via USB, Ethernet or RS-232
|
| Options |
- Accessories
- secondary DVI-D input module
- cube pedestals
|
| Physical characteristics |
- Screen size
- 51.12” x 41.38”
- 1400 x 1050mm
- Cube depth (total)
- Weight - cube
- Weight - engine
- Weight - screen
- Stacking capability3
- Service access
- Rear
- Light weight rear access panels
|
| Environment |
- Operating temperature
- cube: 40° to 90°F, 5° to 35°C
- engine: 32° to 104°F, 0° to 40°C
- screen: 63° to 88°F, 17° to 31°C
- Non-operating temperature
- cube: -4° to 122°F, -20° to 50°C
- engine: -13° to 158°F, -25° to 70°C
- screen: -4° to 95°F, -20° to 35°C
- Humidity
- cube/engine: 20% to 80% NC, 35% to 65% NC for storage
- screen: 40% to 60% NC
- Altitude
- 0 to 3,000m, 0 to 10,000 feet
|
| Power rating (core engine only) |
- Voltage range
- Power consumption
- 135W/190W/220W watts (eco/normal/high brightness)
- Dissipation
- 460/648/750 BTU/hr (eco/normal/high brightness)
|
| Reliability and serviceability |
- MTBF/MTTR
- MTBF: >60,000 hours for all major modules
- 76,000 hrs for power supply
- MTTR: <15 minutes via modular servicing
- Cooling fan lifetime
- LED lifetime
- >80,000 hours in eco mode
- >60,000 hours in normal operating mode
|
| Regulatory (core engine only) |
- Directives/certifications
- (EC) 2011/65/EU (RoHS)
- 2012/19/EU (WEEE)
- Regulation (EC) No. 1907/2006 (REACH)
- CAN/CSA C22.2 No. 60950-1
- UL 60950-1
- IEC 60950-1
- FCC, Part 15, Subpart B, Class A
- ICES/NMB003 (A)
- EN55022/CISPR22 Class A
- EN55024/CISPR24
- The product is designed to comply with rules and regulations required for the product to be sold in various regional markets, including: USA/Canada, EU, Australia/New Zealand, Kuwait, China, Korea, Japan, Mexico, Ukraine, India, Russia, South Africa, and Saudi Arabia
|
| Warranty |
- two years parts and labour limited warranty
- extended warranty available
|
| Addtional features and benefits |
- Integrated 6-axis adjustment system – no electronic image correction required
- Tiling feature to display a single source across a wall array (to 25 displays)
- DVI loop through minimizes cabling
- Multiple Ethernet ports minimise cabling
- Dafe, water-filled, maintenance free, metal sealed heat pipe cooling system ensures long LED lifetime and reliability
- No liquid cooling pumps containing hazardous liquids and requiring annual maintenance/inspection nor hazardous waste disposal
- Cable channeling system enables clean, professional and concealed cabling of all input, power and interconnect cables within the cubes
|
