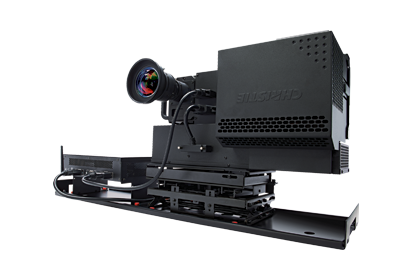

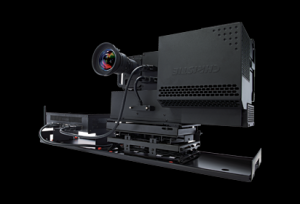

Christie Entero HB HD Rear Projection Engine

dostępność:

producent: Christie

Cena:

Pobierz kartę produktu »

Opis
Dane techniczne
Informacje
W komplecie
Kalkulator projekcji

Christie Entero™ HB is an evolution in performance, reliability and confidence for control room video wall displays and rear projection engines.

Performance – Leading the progression to higher brightness LED displays, Christie has developed Christie Entero HB – the newest generation of high-performance, high-brightness rear projection engines and display wall cubes. With the most advanced LED display system design and Christie’s quality, service and support, Christie Entero HB offers the highest brightness, 24/7 performance, reliability, all with an overall low cost of ownership and operation.

Control – The Christie Entero HB series is the first and only LED control room display to offer wireless control through Wi-Fi capability – make adjustments, control the wall or perform diagnostic monitoring through an iPad or other similar wireless device. It’s that simple.

Flexibility – The Christie Entero HB HD video wall rear projection engines, are part of an expanded series of control room display solutions offering installation flexibility with options in resolution and vertical or horizontal lens orientation to meet specific room or space requirements. Retrofit kits provide even greater flexibility letting you retrofit Christie Entero HB engines into earlier Christie cube offerings.

Maintenance – Designed for zero maintenance, the Christie Entero HB series is solid state, has no consumables and no scheduled maintenance for at least 5 years.

The Christie Entero HB offers the highest brightness on the market, unparalleled 24/7 performance and years of worry-free operation. Plus, with simple, intuitive hardware installation, minimal set-up time and effort and modular design for fast and easy servicing if required, the new Christie Entero™ HB control room display cubes exceeds your expectations.

Features

>900 lumens – normal mode / >1350 lumens – high brightness mode
HD (1920 x 1080) resolution
high performance – high brightness, wide colour gamut, superb contrast, excellent brightness and white level uniformity
Wi-Fi enabled – wireless video wall control through iPad or similar hand-held device
Christie ArraySync™ third-generation automatic LED video wall colour and brightness management
24/7 reliability – based on latest DLP^® technology
zero maintenance design – no consumables, no maintenance for at least 5 years
low cost of ownership/operation
16:9 aspect ratio
integrated 6-axis adjustment system – no electronic image correction required
reduced disruption because there are no consumable components to replace
very wide colour gamut for superior colour reproduction
ultra high contrast, view-ability and display performance
designed for long-term use and performance – no need to replace in a few years
>80,000 hours rated LED life (eco mode)
modular design for minimal downtime if a repair is required
dust free sealed optics
permanently sealed liquid cooling system (no pumps or hazardous liquids)

Light engine	RPMHD-LED02 (HD)
Application	new, custom rear projection displays retrofit of existing cube displays retrofit of older customer display walls
Imaging technologies	Imaging 1-chip DLP, DarkChip Texas Instruments Native resolutions HD (1920 x 1080) 16:9 aspect ratio Illumination LED (red, green, blue) OSRAM redundant LED architecture
Brightness	ANSI Up to 1350 lumens in high brightness mode 900 lumens in normal mode 700 lumens in eco mode Operating modes normal, eco and high brightness Control manual and continuous automatic control to manage brightness uniformity across large display walls
Colour	Temperature range 3200°K to 9300°K Gamut wider than EBU White balance uniformity 0.0003 Δu’ Δv’ Control ArraySync™ automatic colour management with 12-bit processing to precisely and continuously manage uniformity across large display walls without user intervention precise tri-stimulus colour sensing (x,y,z) for superior colour management display light engine is factory calibrated using scientific-grade spectral radiometers for high precision colour management comprehensive controls for manual setup if desired
Optical	Lens types 0.64:1 HD low distortion, zero offset 1.1:1 HD low distortion, zero offset Lens orientation vertical or horizontal Brightness uniformity >95% Contrast ratio up to 2200:1 full field without using dynamic or artificial techniques
Audible noise	Noise power level <30 dBA typical at 1 metre distance from screen centre
Inputs	Standard 1 x digital DVI-D 165 MHz maximum pixel clock frequency single link loop through HDCP support included (operating at native resolution) Optional expansion secondary DVI-D input with automatic fail detection and switch over Compatibility all Christie video wall processors and other standard SXGA+ sources
Control and networking	Methods IR remote keypad external computer or control device via Wi-Fi and/or Ethernet and/or RS-232 (Wi-Fi can be disabled with no radio frequency transmission if required) Physical ports 1 x RS-232 2 x Ethernet RJ45
Monitoring	Status display 2 line by 16 character OLED display Diagnostics via status display, RS-232 and Ethernet/Wi-Fi (can be disabled with no radio frequency transmission, if required)
Upgradability	Software/firmware fast, on site firmware upgrades via USB, Ethernet or RS-232
Options	Accessories secondary DVI-D input module
Physical characteristics	Weight 55lbs (25kg)
Environment	Operating temperature 32°F to 104°F / 0°C to 40°C Non-operating temperature -13°F to 158°F / -25°C to 70°C Humidity 20% to 80% NC Altitude 0 to 3000 metres / 0 to 10,000 feet
Power rating (core engine only)	Voltage range 100-240V AC, 50-60Hz Power consumption 155W/210W/250W watts (eco/normal/high brightness) Dissipation 529/717/853 BTU/hr (eco/normal/high brightness)
Reliability and serviceablity	MTBF/MTTR MTBF: >60,000 hours for all major modules 76,000 hrs for power supply MTTR: <15 minutes via modular servicing Cooling fan lifetime >100,000 hours LED lifetime >80,000 hours in eco mode >60,000 in normal operating mode
Regulatory (projection engine)	Directives/certifications (EC) 2011/65/EU (RoHS) 2012/19/EU (WEEE) Regulation (EC) No. 1907/2006 (REACH) CAN/CSA C22.2 No. 60950-1 UL 60950-1 IEC 60950-1 FCC, Part 15, Subpart B, Class A ICES/NMB003 (A) EN55022/CISPR22 Class A EN55024/CISPR24 The product is designed to comply with rules and regulations required for the product to be sold in various regional markets, including: USA/Canada, EU, Australia/New Zealand, Kuwait, China, Korea, Japan, Mexico, Ukraine, Russia, South Africa, and Saudi Arabia
Warranty	two years parts and labour limited warranty
Additional features and benefits	newer high brightness LED technology redundant LED design zero maintenance design no consumable parts integrated 6-axis adjustment system – no electronic image correction required full function remote keypad with easy-to-use menu system tiling feature to display a single source across a wall array DVI loop through minimizes cabling multiple Ethernet ports minimize cabling safe, water-filled, maintenance free, metal sealed heat pipe cooling system ensures long LED lifetime and reliability no liquid cooling pumps containing hazardous liquids and requiring annual maintenance/inspection nor hazardous waste disposal latest generation processing electronics allowing future enhancements and features intuitive software-based setup tools included for simple and fast setup cross-display monitoring whereby each display monitors and tracks settings of all other displays in the array
