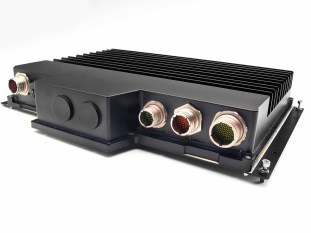

The DPM-2 is Barco's field-proven rugged Display Processing Module for use in wheeled military vehicles, mobile shelters and naval applications. The Barco DPM-2 delivers the latest in industrial workstation class PCIe graphics and Intel® Mobile CoreTM computing performance; packaged in a compact, sealed and rugged enclosure. Barco's DPM-2 rugged computer is fully MIL qualified for use in harsh operating conditions.
Barco’s DPM-2 supports networked, real-time video streaming and processing (e.g. image fusion) for better situational awareness and enhanced decision-making. The workstation class GPU enables hardware-acceleration for video streaming and best-in-class 3D imaging.
The DPM-2 offers wide connectivity to any vehicle position, including driver, soldier and commander. Barco's DPM-2 represents the most reliable mission-critical computer for demanding operations in harsh environments.
| General specifications | |
|---|---|
| Computing | Intel® Dual-Core™ i7-2655LE, 2x 2.2GHz, 8GB ECC RAM |
| Graphics card | NVIDIA® K2000D |
| Storage capacity | 128GB Removable SSD, SATA II compliant (3 Gb/sec) |
| Inputs - Outputs | 2x Gig Ethernet, 4x RS-232, 1x Audio, 2x DVI-D (clone) 4x USB 2.0, 2x PS/2 1x Maintenance 1x System Reset |
| Option slots | 1x PCIe 1x Video Input expansion slot |
| Operating system | Microsoft Windows 7 Professional for Embedded Systems, 64-bit |
| Power Supply | 28VDC |
| Power consumption | Power consumption <200W typ., 300W max |
| Dimensions | 420 x 319 x 63mm / 16.5" x 12.6" x 2.5" (w x d x h) |
| Weight | 7.8 kg / 17.2 lbs |
| Environmental | (MIL-STD-810G) Operating temperature: -30 to +55 °C (+71°C with fans) Storage temperature: -40 to +71 °C Humidity: 95%, 60 °C Altitude: 35,000ft operating, 40,000ft non-operating Salt fog: 48-hours, 5% concentration Sand and dust: blowing sand/dust Ingress protection: IP 65 Vibration: Trailer and Composite Wheeled Vehicles Shock: 40g, 23ms (6 shocks/axis) |
| EMI / EMC | (MIL-STD 461F) Ground army |
| Options | |
| Storage upgrade | 256GB Removable SSD, SATA II compliant (3Gb/sec) |
| Barco Video Input Board | 3x PAL/NTSC Video |
| Operating systems | Microsoft Windows XP, 32-bit RedHat Linux Enterprise Linux 6.x, 64-bit |
| Barco CommonSENSE Advanced | Includes advanced image processing functions such as fusion |
| Rugged keyboard | Includes integrated pointing device |
