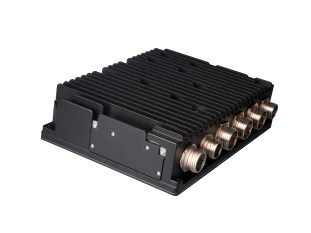

The DPM-3 rugged computer is designed for optimal SWaP-C (Size, Weight, Power and Cost), offering the most compact package in its processing class, and ruggedization for the most extreme environments. Its modular and open architecture offers the possibility to create a complete, customized solution.
Barco's DPM-3 easily connects to a wide range of sensors and the discrete GPU enables hardware-accelerated image processing. The DPM-3 rugged computer features advanced video processing (e.g. image fusion) and offers high resolution video streaming functionality for improved situational awareness.
| General specifications | |
|---|---|
| Computing | Intel® Dual-Core™ i7-2655LE, 2x 2.2GHz, 8GB ECC RAM |
| Graphics card | Integrated Intel® HD Graphics 3000 |
| Storage capacity | 128GB Removable SSD, SATA II compliant (3 Gb/sec) |
| Inputs - Outputs | 2x Intel PRO1000 Gigabit Ethernet port 6x USB 2.0 8x serial lines (RS232/RS422/RS485) 2x CAN bus, CAN 2.0B compliant HD audio in/out/micro AC 97 4x video inputs RS170, PAL/NTSC I/O isolated or buffered as applicable |
| Option slots | 1x MXM 2x XMC 1x Vehicle I/O extension slot |
| Operating system | Microsoft Windows 7 Professional for Embedded Systems, 64-bit |
| Power Supply | 28VDC, MIL-STD-1275D compliant, IES hold-up compliant |
| Power consumption | Power consumption 50W typ., 80W max (without heaters) |
| Dimensions | 305 x 217 x 76mm / 12.00" x 8.50" x 3.00" (w x d x h) |
| Weight | 5 kg / 11 lbs |
| Environmental | (MIL-STD-810G) Operating temperature: -46 to +65 °C (+71°C with limitations) Storage temperature: -46 to +85 °C Thermal shock: -46 to +85 °C Humidity: 95%, 60 °C Altitude: 15,000ft operating, 40,000ft non-operating Salt fog: 48-hours, 5% concentration Sand and dust: blowing sand/dust Ingress protection: 1 meter immersion for 30 minutes Vibration: Tracked Vehicle profile Shock: 40g, 23ms (6 shocks/axis) |
| EMI / EMC | (MIL-STD 461F) Ground army |
| Options | |
| Graphics upgrade | AMD® MXM E6760 GPU |
| Storage upgrade | 256GB Removable SSD, SATA II compliant (3Gb/sec) |
| Barco Video XMC Board (VXB) | 4x PAL/NTSC Video 1x RGB Input 2x HD-SDI Inputs 1x Gigabit Ethernet (GigE Vision or DEF-STAN 00-82 streaming) Gen-locking Real-Time video processing |
| Barco vehicle I/O extension board | 16x digital input, contact to the vehicle chassis ground 4x digital outputs, 300 mA, referenced to the vehicle VBAT (32V max Low Side) 4x digital outputs, 2 A, referenced to the vehicle GND (High Side) 4x analog inputs (2 x 0 to 5V and 2 x 0 to 36V) |
| Serial I/O PMC | 4x serial ports (RS-232/422/485) |
| Operating systems | Microsoft Windows XP, 32-bit RedHat Linux Enterprise Linux 6.x, 64-bit |
| Barco CommonSENSE Advanced | Includes advanced image processing functions such as fusion |
| Rugged keyboard | Includes integrated pointing device |
