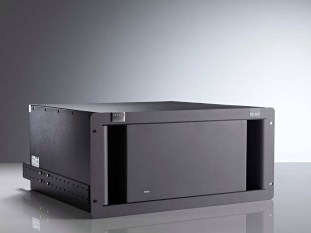

DX-100 Single-window video processor for LED displays

dostępność:

Cena:

Pobierz kartę produktu »

Opis
Dane techniczne
Informacje
W komplecie
Kalkulator projekcji

The DX-100 is a single-window video processor designed as a versatile front-end to a wide range of Barco LED displays. With color calibration, genlocking, DVI/(HD)SDI input and both DVI and NNI output modules and a wide variety of show effects, the DX-100 is an ideal and user-friendly choice to boost the performance of your display.

Features

Features

Digital effects
Color correction and enhancement
External genlock
Advanced delay modes
Internal test patterns

Inputs/Outputs

Single/dual link DVI inputs
EDID support
SD-SDI/HD-SDI Input
Genlock input
Removable Single-channel NNI output/Three-channel DVI output

Control

DTS (v2.05 or later)

Mechanical

Rack-mountable (5RU)
Auto-ranging power supply

This product is an option of the following products

MiSTRIP

Small pitch, LED pixel strip

Article number: R9010565B8

ILite 6 BK

6mm pixel pitch, 2,000 nits surface-mounted LED tile

Article number: R9010251B1

TF16BK

16mm pixel pitch, 6,000 nits black lamp LED tile

Article number: R9004829

C5

5.5mm pixel pitch, black face indoor LED display

Article number: R9052928B1

OLite 612 Fixed

Small pitch, surface-mounted creative LED tile

Article number: R9010412

C8

8.33mm pixel pitch, 5,000 nits outdoor LED display

Article number: R9052943B1

NX6

6mm pixel pitch, 2,000 nits, true black surface-mounted LED tile

Article number: R9052780B1

C16

16.7mm pixel pitch, 2,000 nits indoor LED display

Article number: R9052929B1

SF-10v

Outdoor LED video display for sports applications

Article number: R9004843

SP-4816

16mm pixel pitch, 6,000 nits LED sports perimeter system

NX4s

4.66mm pixel pitch, 2,000 nits, true black surface-mounted LED tile

Article number: R9052926F6

TF16

16mm pixel pitch, 6,000 nits outdoor LED tile for fixed installation

Article number: R9004864 (front access),R9004865 (back access)

FLX-24

Medium pitch, 24mm transformable LED module

Article number: R9052900

C7

7mm pixel pitch, 2,000 nits, surface-mounted LED tile

Article number: R9052933B1

TF10

10.2mm pixel pitch, 6,500 nits outdoor LED tile for fixed installation

Article number: R9004860

X8

8.6mm pixel pitch, 4,200 nits outdoor SMD LED display

Article number: R9004491F3

FLX-60

Large pitch, 60mm transformable LED module

Article number: R9052800

Input	SDI 8NTSC/PAL per SMPTE 259M HD 720p per SMPTE 296M / HD 1080i per SMPTE 292M DVI RGB/YCbCr All supported to maximum pixel rate: Single link (165MHz) / Dual link (240MHz)
Output	Removable NNI Proprietary Barco format on an HDMI connector Up to 2048 pixels either horizontally or vertically. Maximum active area: 768K pixels 12 bits per RGB per pixel DVI Proprietary Barco format on an DVI connector Up to 2048 pixels either horizontally or vertically. Maximum active area: 3x 480K pixels
Processing	Number of layers: 1 Number of layers: 1 Ext. Genlock: Composite sync signal (standard or tri -level) or black burst. Termination is 75 ohms, +/- 0.1%. Video Delay Min. delay mode: 2 ms Video Delay Min. delay mode: 2 ms Reduced delay mode Progressive sources: 2ms Interlaced sources: 23ms @ 50Hz / 19ms @ 60Hz
Physical and Electrical	Power Input: 100-240 VAC, 50-60 Hz Power consumption: 180 watts maximum Mechanical: H: 8.75 inches (22.22 cm) W: 17.00 inches (43.18 cm) W: 19.00 inches (48.26 cm) with rackmount wings D: 17.00 inches (43.18 cm), excluding connectors and latches 5RU rackmount Temperature: 0-40 degrees C Humidity: 0-95% non-condensing Chassis Weight: 52 lbs. (23.6 kg)
