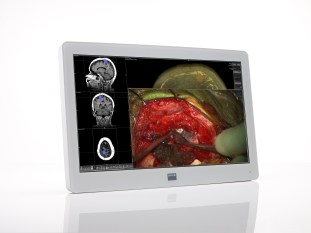

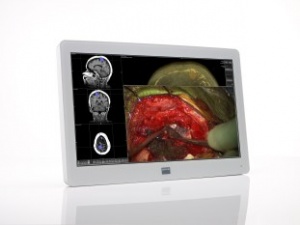

Barco's MDSC-2224 is a 24-inch near-patient surgical display with LED backlight, featuring full HD resolution and a wide color gamut. Purpose-built for the operating room, the MDSC-2224 offers an easy-clean design, smart mechanics and the most detailed images in the procedure room today.
Thanks to its high brightness, high contrast and high resolution, the MDSC-2224 presents surgeons with accurate, realistic images and excellent depth perception. It also offers the fastest, lag-free transmission of surgical images and the highest image quality available today.
Our next-generation motion adaptive de-interlacing and noise reduction algorithms, using full 10-bit image processing, are your guarantee for detailed, sharp, and noise-free pictures, so you can detect the most subtle changes in tissue color.
With its broad input connectivity, the MDSC-2224 offers the highest flexibility for multi-modality imaging (PiP & PaP), enabling reproduction of images from multiple sources and to multiple displays in the integrated operating room.
The 24-inch display is one of Barco's network-enabled surgical displays and offers integrated functionality (optional) for use with Nexxis digital OR, ensuring smooth distribution of uncompressed video and data over the IP network without delay.
Barco's MDSC-2224 allows easy cleaning and disinfection thanks to its smooth surface, splash-proof housing, and full screen protection. The fan-less design avoids the spread of contaminants.
The display comes with a smart cable management system that hides the cables for a clutter-free set-up. It is light and compact, allowing easy (dual-monitor) mounting on surgical booms and spring arms.
Barco's MDSC-2224 features:
| Screen technology | TFT AM LCD / S-IPS technology / LED backlight |
|---|---|
| Active screen size (diagonal) | 611.3 mm (24") |
| Active screen size (H x V) | 518.4 x 324 mm (20.4” x 12.7") |
| Aspect Ratio | 16:10 |
| Resolution | 1920 x 1200 |
| Pixel pitch | 0.270 mm |
| Color imaging | Yes |
| Color support | 1073 million (10-bit) |
| Color gamut | Wide gamut (Adobe RGB 1998) |
| Viewing angle | 178° Hor / 178° Ver |
| Maximum luminance | 350 cd/m² (typical) |
| Contrast ratio | 1000:1 (typical) |
| Response time | 6 msec (GtG - typ) |
| Dot clock | (max) 165 Mhz |
| Gamma curve | Native, 1.8, 2.0, 2.2, 2.4, DICOM |
| Housing color | White RAL 9003 |
| Video inputs | Video input signals: -DVI-I Single-Link (Digital & Analog – HDMI video support with HDCP) -Component Video RGBS / YPbPr (4xBNC) -S-video (4-pin Mini DIN) -Composite video (1xBNC) -3G-SDI (1xBNC) -DisplayPort (VESA std 1.1a) -Optional: integrated BARCO Nexxis network adapter Video input formats: -VGA & DVI: Up to 1920x1200 at 60Hz (reduced blanking) Maximum pixel clock: 165MHz Maximum Hor freq: 90kHz Maximum Ver freq: 75Hz -Standard PAL and NTSC for S-Video, Composite and Component -Component YPbPr/ RGBS: HDTV - up to 1080i & 1080p -SDI Format Supported: 625/25 PAL, 525/29.97 NTSC, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94, 720p60, 1080p50, 1080p59.94, 1080p60 -SDI Compliance: SMPTE 425M (Level A), SMPTE 424M, SMPTE 292M, SMPTE 259M-C, SMPTE 296M, ITU-R BT.656, ITU-R BT.601 -Displayport 1.1a: up to 1920 x 1200 60Hz |
| Video outputs | DVI-D S-video (4-pin Mini DIN) Composite video (1xBNC) 3G-SDI (1xBNC) |
| Remote Control | RS-232 (D-sub 9-pin) |
| Power requirements (nominal) | Power source for external power supply: 100 – 250 VAC / 47-63 Hz auto-switch Power source for display power input: +24 VDC / 2.5A Power supply for external module: +5VDC ±10% @500mA (max) through the DVI connectors DVI-in & DVI-out (on pin 14 or pin 16 - OSD programmable) |
| Power management | DVI-DMPM states supported Power On state Active-Off state |
| Power consumption (nominal) | less than 60 W (LED version) |
| OSD languages | English, French, German, Spanish, Italian |
| Dimensions w/o stand (W x H x D) | 595 x 414 x 84 mm (23,4” x 16,3” x 3,3”) |
| Net weight w/o stand | 7.7 kg (17.0 lbs) without power supply |
| Net weight packaged w/o stand | 10.0 kg (22.0 lbs) |
| Mounting standard | 100 x 100 mm VESA |
| Screen protection | IP21 / Front face: IPx5 Double coated, anti-reflective PMMA / White RAL 9003 |
| Recommended modalities | Endoscopy, laparoscopy, X-ray, CT, MR, US |
| Regulation Compliance | IEC60601 3rd Edition Approvals/Marking: CE, C-UL-US, DEMKO, CCC Safety (Medical equipment): IEC60601-1, UL60601-1, CSA-C22.2 nr 601-1-M90 Electromagnetic Compatibility: EMC Medical EMC Standards: IEC60601-1-2, EN55011 /CISPR 11, FCC CFR47 part 15 & 18/Class A Environment: ROHS-2, REACH, WEEE compliant |
| Temperature | Operating: 0° - 40° C / Storage: -20° - 60° C |
| Humidity | Operating: 10% – 90% R.H. / Storage: 5% – 90% R.H. |
| Keyboard/mouse | Touch-sensitive, 7-key, backlit, bottom-right |
| Supplied accessories | User Manual, DVI Dual-Link cable 3.0m, Mains cables ( EU (CEBEC/KEMA) & US (Hospital grade UL)), External power supply |
| Optional accessories | Barco Surgical LCD Display Desk Stand, Barco MDSC Surgical Medical LCD Display Extension Cable 10m |
| Warranty | 3 years |
