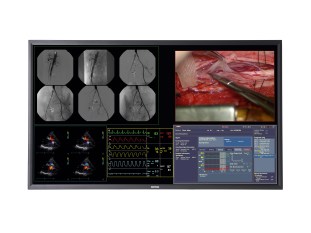

The MDSC-8258 is a slimline, large-screen surgical display with LED backlight, featuring a 58-inch LCD panel (16:9) with Quad HD resolution (3840 x 2160).
The MDSC-8258 has been designed for use in hybrid operating rooms, interventional X-ray and cardiovascular suites. The MDSC-8258 delivers accurate DICOM-compliant grayscale and color images with ultra-low latency, making it the preferred choice for real-time critical imaging.
The large-size, ultra high-resolution LCD screen offers a safer and more efficient alternative to multi-monitor configurations deployed in surgical environments. The optional configuration with a redundant power supply architecture (RL) ensures stable and reliable operation in the most critical conditions.
| Screen technology | a-si TFT active matrix |
|---|---|
| Active screen size (diagonal) | 1473 mm (58.0") |
| Active screen size (H x V) | 1270.08 x 721.44 mm (50 x 28.4") |
| Aspect ratio (H:V) | 16:9 |
| Resolution | 8MP (3840 x 2160) |
| Pixel pitch | 0.33075 mm (H) x 0.334 mm (V) |
| Color imaging | Yes |
| Color support | 16 million |
| Viewing angle (H, V) | 88° |
| Maximum luminance | 700 cd/m² (typical) |
| Contrast ratio | 4000:1 (typical) |
| Response time | 9.5 ms (typical) |
| Housing color | Black |
| Video input signals | DVI Dual Link |
| Power requirements (nominal) | 90 ÷ 264 Vac 50Hz/60Hz |
| Power consumption | 400 W (maximum) |
| Power consumption | 35 W (stand-by) |
| Power save mode | Yes |
| Dot clock | 260 MHz DVI dual link (preferred) |
| Dimensions (W x H x D) | Version w/o front glass: 1318.5 x 776 x 145.8 mm Version with front glass: 1326.5 x 778 x 153.7 mm |
| Dimensions packaged (W x H x D) | 1540 x 413 x 940 mm |
| Net weight | 46 - 59 kg (depending on version) |
| Net weight packaged | 68.5 - 83 kg (depending on version) |
| Mounting standard | VESA (400 mm) |
| Screen protection | Protective, non-reflective glass cover |
| Recommended modalities | Endoscopy, Laparoscopy, PACS, PM, US, CT, MR |
| Certifications | MDD 93/42/EEC, amended by 2007/47/EC Class I, IEC 60601-1:2005 + CORR. 1 (2006) + CORR. 2 (2007), EN 60601-1:2006 UL60601-1, 1st Edition, 2006-04-26, ANSI/AAMI ES 60601-1, 3rd edition:2005 EN 60601 3rd edition, CAN/CSA-C22.2 No. 601.1-M90, 2005, CAN/CSA-C22.2 No. 60601-1 (2008), IEC / EN 60601-1-2: 2007, EN 55011 / CISPR11 |
| Supplied accessories | User Guide |
| Warranty | 2 years |
| Operating temperature | 10-35°C for performance / 0-40°C for safety |
| Storage temperature | -20 ÷ +60°C |
| Operating humidity | 10 ÷ 90% (non-condensing) |
| Storage humidity | 10 ÷ 90% (non-condensing) |
| Operating altitude | 3000m (maximum) |
| 12000m (maximum) |
