dostępność:
producent:
Cena: 28 351,50 zł
.jpeg)

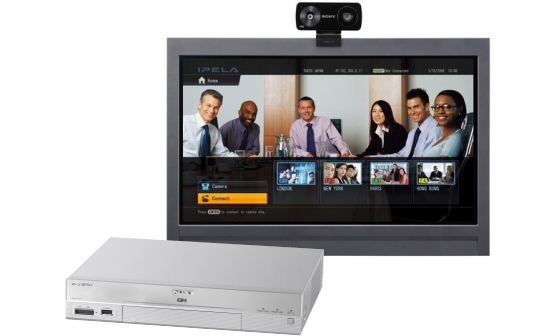

Easy to set up and use, this HD video conferencing system offers a powerful yet affordable solution for everyday business communications.
The compact, High Definition CMOS camera attaches neatly to a wide range of display screens, minimising disruption to your existing office AV infrastructure. Enjoy smooth, crisp HD video plus clear sound from the integrated microphone. Enrich conferences with shared presentations from the screen of your PC.
Optional PCSA-MCG80 MCU software makes multi-point conferences just as simple. The PCS-XA80 can be configured to communicate with up to five remote sites via either IP or ISDN connections.
Everything else is included: video codec unit, HDMI cable for connecting to a display/monitor and remote commander for easy one-touch dialling from your contacts list.
NB: Display is not included.
W przypadku pytań, proszę o kontakt:
adam@kraftmann.com
GSM. 504 58 64 88
tel. 22 490 31 43
| Power Requirements | DC 19.5 V (AC Adapter : AC 100 V to 240 V, 50/60 Hz) |
|---|---|
| Power Consumption | 40 W (the codec only) |
| Power Consumption (Standby） | 10 W (the codec only) |
| Operating Temperature | 5°C to 35°C 41°F to 95°F |
| Storage Temperature | -20°C to +60°C -4°F to +140°F |
| Operating Humidity | 20% to 80% (no condensation) |
| Storage Humidity | 20% to 80% (no condensation) |
| Dimensions (W x H x D) | Codec: Approx. 282 x 56 x 244mm (excluding protrusions) Approx. 11 1/8 x 2 1/4 x 9 5/8 inches (excluding protrusions) Camera unit: Approx. 115 x 49.2 x 29.3 mm (excluding protrusions and arm) Approx. 4 5/8 x 1 15/16 x 1 3/16 inches (excluding protrusions and arm) |
| Mass | Codec: Approx. 2.2 kg Approx. 4 lb 14 oz Camera unit: Approx. 0.5 kg Approx. 1lb 2 oz |
| Supplied Accessories | PCSA-CXG55 HD camera (1) PCS-A1 microphone (2) AC adapter (1) Power cord (1) HDMI cable (3m) (1) RF Remote Commander Unit (1) Batteries for Remote Commander unit (2) CD-ROM (Operating Instructions, Before using this unit, Quick connection guide) (1) Installation Guide (1) Remote commander guide (1) Important notice regarding software (1) Warranty booklet (1) Camera cable (3m) for HD camera (1) Hook-and-loop pads for HD camera (2) Operating instructions for HD camera (1) Adhesive disc for suction cup (for HD camera) (1) Operating instructions for HD camera (1) |
| *1 | The values for dimensions are approximate. |
| *2 | It requires the optional data solution software PCSA-DSG80 to send video and presentation data simultaneously. |
| *3 | Available only when local and remote terminals are both PCS-XG80 working in the 1080i mode. |
| *4 | Available only when local and remote terminals are both PCS-XG80 working in the 1080 mode. Input/Output signals are 1080i. |
| *5 | Maximum speed is 4 Mbps when the connected point does not use the PCS-XG80/XA80. |
| *6 | It is unavailable depending on the model. |
| *7 | Interoperable with other manufacturer's endpoint which is compliant to H.323/H.320. It does not mean that all connections are guaranteed. |
| *8 | It requires the optional data solution box PCSA-DSB1S to send PC image. |
| *9 | Composite input requires a conversion cable |
Make every conference more productive with clear, natural High Definition (720p) video images. The compact 8 megapixel CMOS camera (PCSA-CXA55) attaches directly to a wide range of displays, minimising office clutter. Get closer to conference participants with 3x electronic zoom, or pan/tilt manually to change your viewpoint. There’s even a privacy shutter to prevent other video callers from seeing you if desired.
The built-in stereo echo canceller makes speech clearer, more natural-sounding and easier to follow.
Send video, voice and presentation data displayed on your PC to other videoconferencing participants. With support for industry standards (ITU-T H.239), presentation data can be sent at frame rates as high as 30fps for smooth, natural looking presentations – even when you’re using animation effects or showing videos on your PC.
Using optional PCSA-MCG80 MCU software, the PCS-XA80 can be configured to communicate with up to five remote videoconferencing sites (six sites total) simultaneously, using any mix of IP or ISDN connections.
The PCS-XA80 is also ideal for services such as distance learning or remote consulting. Kiosk mode offers a simplified user interface for user-friendly ‘unattended’ operation that can be easily customised by system integrators.
Enjoy stable transmission of video, voice and data with Enhanced Intelligent QoS™ (Quality of Service) Functions that ensure fast, consistent data throughput that adapts transmission to take account of changing network conditions.
Keep your business private, just the way it should be. Support for 128-bit AES encryption ensures safe, highly secure voice/video/data conferences with other compliant systems.
Add an optional tablet/pen interface to sketch notes and highlight your point clearly on shared data presentations.
Configure screen layout from a choice of display modes to display video and presentation data: Full Screen, Picture-in-Picture, Picture-and-Picture or Side-by-Side split screen.
Enjoy simple operation and control with the attractive, intuitive on-screen interface.
Enjoy the speed and convenience of one-touch dialling with the newly designed RF Remote Commander unit that does not have to be pointed directly towards the system. Just browse and select from the thumbnail image any of up to 1000 stored contacts: up to four regularly-accessed contacts can be shown on the home screen.
The compact, smartly styled PCS-XA80 integrates neatly into any boardroom, small- or medium-sized meeting room.
