Cena: 29 618,40 zł
This versatile, easy to use Videoconferencing system is ideal for general business communications as well as distance learning.

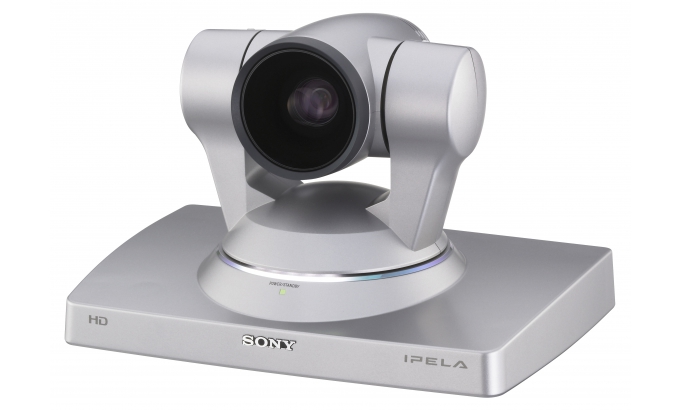

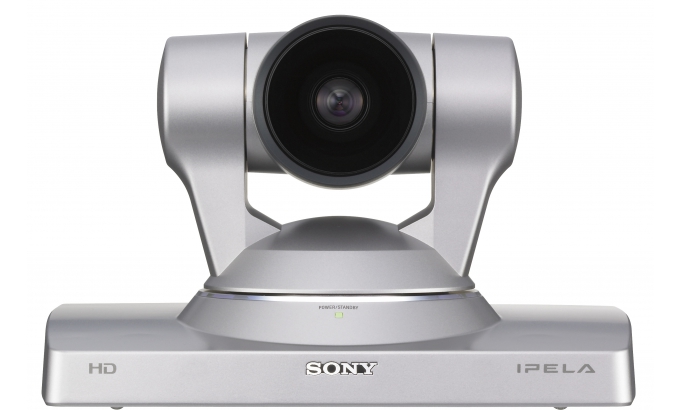

The compact, mainstream system includes a High Definition PTZ camera with ‘BrightFace’ technology for crisp images in any lighting conditions – even dimly lit rooms where a projector’s being used. Superb picture quality is partnered by clear, echo-free stereo audio so every participant can be seen and heard clearly.

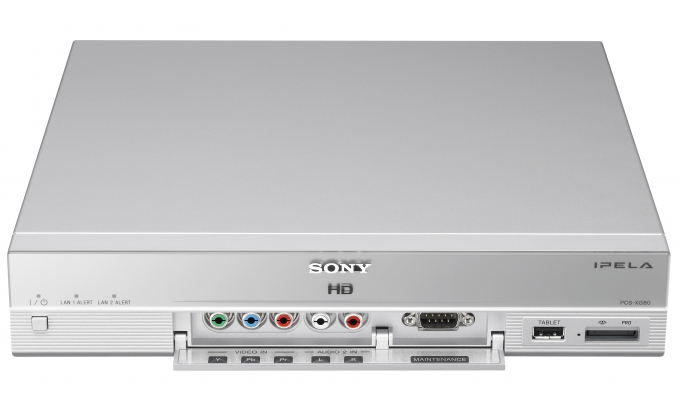

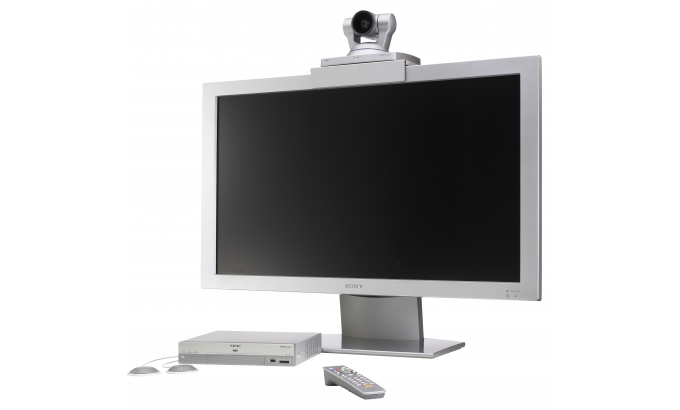

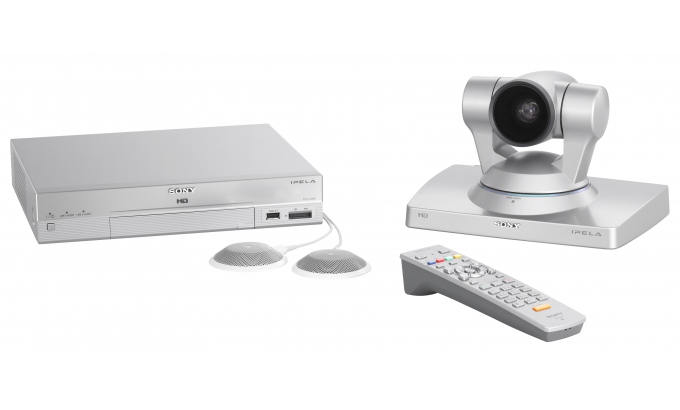

Included with the HD video codec unit and camera are two microphones for stereo and a HDMI cable for easy connection to a video monitor, TV or display.
Also available, the PCS-XG80S is a ‘standalone’ version that does not include a PTZ camera. The PCS-XG80/9DS system bundle includes PCSA-DSG80 Data Solution Software for simultaneous sharing of HD video and presentations from a connected PC.
Set-up and operation are refreshingly straightforward. The supplied remote commander allows easy one-touch dialling from your contacts list. Conference participants can share smooth, clear video and voice together with presentations from your PC. A choice of screen layout options makes it easy to configure video conferencing and PC data displays just the way you want to. Voice-activated switching automatically detects who’s speaking, displaying their picture as the main image alongside smaller images of other participants.
Optional software makes multi-point conferences are just as simple. The PCS-XG80 can be configured to communicate with up to five remote sites, including a mix of IP and ISDN connections. In addition, two main units can be cascaded to support a maximum of ten sites.
W przypadku pytań, proszę o kontakt:
adam@kraftmann.com
GSM. 504 58 64 88
tel. 22 490 31 43
| Power Requirements | DC 19.5 V (AC Adapter : AC 100 V to 240 V, 50/60 Hz) |
|---|---|
| Power Consumption | 40 W (the codec only)/90 W (incl. PCSA-CXG80 and PCSA-B768S) |
| Power Consumption (Standby） | 10 W (the codec only)/15 W (incl. PCSA-CXG80 and PCSA-B768S) |
| Operating Temperature | 5°C to 35°C 41°F to 95°F |
| Storage Temperature | -20°C to +60°C -4°F to +140°F |
| Operating Humidity | 20% to 80% (no condensation) |
| Storage Humidity | 20% to 80% (no condensation) |
| Dimensions (W x H x D)[[F_ZD0001]] | Codec: Approx. 282 x 56 x 244 mm (excluding protrusions) Approx. 11 1/8 x 2 1/4 x 9 5/8 inches (excluding protrusions) Camera unit: Approx. 240 x 152 x 158 mm (excluding protrusions) Approx. 9 1/2 x 6 x 6 1/4 inches (excluding protrusions) |
| Mass | Codec: Approx. 2.2 kg Approx. 4 lb 14 oz Camera unit: Approx. 2 kg Approx. 4 lb 7 oz |
| Supplied Accessories | PCSA-CXG80 HD camera (1) PCS-A1 microphone (2) AC adapter (1) Power cord (1) HDMI cable (3m) (1) RF Remote Commander Unit (1) Batteries for Remote Commander unit (2) CD-ROM (Operating Instructions, Before using this unit, Quick connection guide) (1) Installation Guide (1) Remote commander guide (1) Important notice regarding software (1) Warranty booklet (1) Camera cable (3m) for HD camera (1 ) Hook-and-loop pads for HD camera (2) Operating instructions for HD camera (1) Warranty booklet for HD camera (1) |
| *1 | The values for dimensions are approximate. |
| *2 | It requires the optional data solution software PCSA-DSG80 to send video and presentation data simultaneously. |
| *3 | Available only when local and remote terminals are both PCS-XG80 working in the 1080i mode. |
| *4 | Available only when local and remote terminals are both PCS-XG80 working in the 1080 mode. Input/Output signals are 1080i. |
| *5 | Maximum speed is 4 Mbps when the connected point does not use the PCS-XG80/XA80. |
| *6 | It is unavailable depending on the model. |
| *7 | Interoperable with other manufacturer's endpoint which is compliant to H.323/H.320. It does not mean that all connections are guaranteed. |
| *8 | It requires the optional data solution box PCSA-DSB1S to send PC image. |
| *9 | Composite input requires a conversion cable |
Make every conference more productive with clear, natural High Definition video images at up to 1920 x 1080 (Full HD) resolution. BrightFace technology by Sony optimises image brightness, lightening shadows and darkening too-bright areas. You’ll enjoy a clear view of each presenter, even in dimly lit conference rooms or with strong backlighting. NB: camera not included with PCS-XG80S.
Conferences are more natural and lifelike with crisp, clear stereo sound. The built-in echo canceller makes speech even more natural-sounding and easier to follow.
Send video, voice and presentation data displayed on your PC to other videoconferencing participants (NB: requires PCS-XG80/9DS system bundle or PCSA-DSG80 Data Solution software). With support for industry standards (ITU-T H.239), presentation data can be sent at frame rates as high as 30fps for smooth, natural-looking presentations – even when you’re using animation effects or showing videos on your PC.
Using optional MCU software, the PCS-XG80 can be configured to communicate with up to five remote videoconferencing sites (six sites total) simultaneously, using any mix of IP or ISDN connections. Two PCS-XG80 units – each installed with the optional MCU software – can also be cascaded with an IP connection to support a maximum of ten sites.
See everyone clearly with support for four-screen as well as six-screen continuous-presence modes. Voice Activated Switching automatically displays the active speaker on the largest sub screen alongside other participants, or can display the current speaker in full-screen mode.
Enjoy stable transmission of HD video, voice and data with Enhanced Intelligent QoS™ (Quality of Service) Functions that ensure fast, consistent data throughput that adapts transmission to take account of changing network conditions.
Keep your business private, just the way it should be. Support for 128-bit AES encryption ensures safe, highly secure voice/video/data conferences with other compliant systems.
Add an optional tablet/pen interface to sketch notes and highlight your point clearly on shared data presentations.
Configure screen layout from a choice of display modes to display video and presentation data: Full Screen, Picture-in-Picture, Picture-and-Picture or Side-by-Side split screen.
Enjoy simple operation and control with the attractive, intuitive on-screen interface.

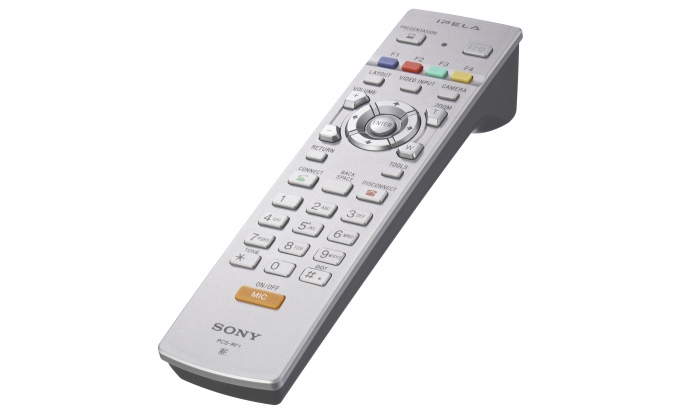

Enjoy the speed and convenience of one-touch dialling with the newly designed RF Remote Commander unit that does not have to be pointed directly towards the system. Just browse and select from the thumbnail image any of up to 1000 stored contacts: up to four regularly-accessed contacts can be shown on the home screen.

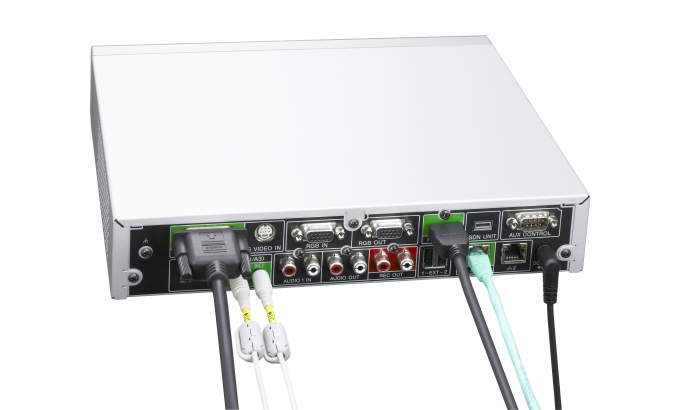

The supplied HDMI cable allows easy connection to any HDMI-equipped video monitor, TV or display. Audio and video are both transferred via a single connection, minimising set-up and cutting cable clutter.
Dual network interfaces allow easy switching between office-base LAN and WAN connections – saving time if you need to use the system both within an intranet environment and over the public Internet. Multi-point connections can also be made between LAN and WAN environments.
Seamlessly integrate the PCS-XG80 with your existing Standard Definition video conferencing environment – allowing easy migration from SD to HD in line with your business needs.
The light, space-saving PCS-XG80 fits neatly into boardrooms, medium-sized and smaller meeting rooms as well as classrooms and teaching suites.
