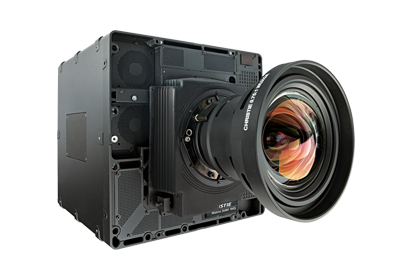

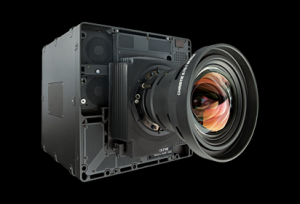

Projektor Christie Matrix SIM WQ 130-003104-XX

dostępność:

producent: Christie

Cena:

Pobierz kartę produktu »

Opis
Dane techniczne
Informacje
W komplecie
Kalkulator projekcji

Built on the same stable, long-life RGB-LED illumination platform as the Christie Matrix StIM™ WQ, the Christie Matrix SIM WQ offers a virtually maintenance-free option for commercial aviation as well as military training applications where NVG stimulation is not required.

The Christie Matrix SIM WQ takes solid state projection for the civil aviation sector to the next level. With higher brightness, WQXGA resolution, real-time balancing of colour and brightness levels, and advanced, user-adjustable smear reduction technology, the Christie Matrix SIM WQ LED illuminated projector exceeds FAA standards, providing the most true-to-life image quality in the simulation industry.

Designed with Christie expertise, this simulation projection system has a fully ruggedised chassis for motion platform use. With no consumables the Matrix SIM WQ is a virtually maintenance-free system which boasts extremely low sustainment costs for a low total cost of ownership.

It's designed with the same solid state illumination platform as the original Christie Matrix SIM which has been successfully integrated and proven on commercial simulators with FAA qualification approval for complete unrestricted training.

Technology	1-chip DLP^®
Resolution	2560 x 1600 WQXGA
Brightness	800 ANSI lumens
Contrast	10,000:1
Illumination	RGB
Illumination lifetime	Greater than 50,000 hrs to 50% output
Height	15.75" (400mm)
Width	15.75" (400mm)
Depth	16" (406mm)
Weight	88lbs (40kg)

Engineered specifically for simulation and training

Christie Matrix SIM WQ is a fully integrated projection system designed to exceed Level D compliance for projectors in Full Flight Simulators. Simulation-specific features include:

Christie ArrayLOC™ – for real-time balancing of colour and brightness levels
Christie AccuFrame™ – smear reduction technology to accurately display high speed simulation content. On the Christie Matrix SIM WQ, AccuFrame is fully adjustable in 1% increments allowing system designers to maximise dynamic image quality over a range of frame rates and training scenarios for the most realistic displays.

Christie Matrix SIM WQ offers you peace of mind

Built on an inherently stable long-life platform that doesn't fade over time, Christie Matrix SIM WQ is a lamp-less illumination system that offers unprecedented stability and reliability at an extremely low sustainment cost that translates to a low total cost of ownership.

Designed for 24/7 operation, the Christie Matrix SIM WQ provides years of continuous operation with no consumables and is virtually maintenance-free.

Features

Visual display solution meets FAA Level D simulator standards
Integrated, extraordinarily fast LED illumination with a lifetime greater than 50,000 hours to 50% output
No consumables – no lamps for longer life, longer reliability and lower cost of ownership than traditional lamped projectors
Solid state technology with single DMD™ – provides unmatched picture reliability, filter-free design and no colour wheel for high reliability
Unlimited mounting options – removes restrictions of a lamp for any orientation mounting
Ruggedised motion platform kit – to withstand 5g shock load
Increased colour gamut – for more dynamic and realistic rendering of the training environment

Luminous Flux:	800 ANSI lumens
Contrast:	10,000:1 dynamic contrast (under LED control) No mechanical iris required
Uniformity:	95% brightness and colour uniformity after electronic adjustment
Display Technology Type:	Revolutionary solid state projector using a single TI Darkchip 3™ DMD with a solid state illumination engine (no colour wheel) and sealed optics.
Native Resolution:	2560 x 1600 WQXGA
Inputs:	Signal format: 2560 x 1600 WQXGA (VESA RB) Input frame rate: 60Hz with Single Input
Inputs, Control and Networking:	1 x Dual-link DVI-D On-board Ethernet control capabilities Additional Ethernet connections for Christie ArrayLOC™ network IR/wired remote control as part of optional user kit 2 x RS-232 ports and 1 x RS-422 port
Lens Mount:	Mechanical, horizontal and vertical lens shift No shutter required No iris required - user programmable illumination parameters(eliminates the need for a mechanical shutter)
Illumination:	Solid State illumination RGB Illumination lifetime greater than 50,000 hours (to 50% output)
Christie ArrayLOC™:	Manages the brightness and colour levels of all projectors within an array to a common level, in real time with no additional latency
Lenses and Lens Offsets¹:	0.68:1 fixed lens features ±5% (horizontal) and ±15% (vertical) offset when mounted in landscape orientation 0.80:1 fixed lens features +100%/-60% (horizontal) and +150%/-100% (vertical) offset when mounted in landscape orientation 1.28-1.71:1 zoom lens features +100%/-60% (horizontal) and +150/-100% (vertical) offset when mounted in landscape orientation
Standard Accessories:	Line Cord
Optional Accessories:	0.68:1 WQXGA fixed lens 0.80:1 WQXGA fixed lens 1.28-1.71:1 WQXGA zoom lens User kit (includes manual, IR remote) Rugged Motion Platform kit² to withstand 5g shock load (purpose-built) Ruggedised transit case Remote IR sensor Christie MotoBlend™ optical blending³
Enhanced feature sets:	Minimum Processing Latency (MPL™) Christie AccuFrame™ smear reduction, fully adjustable in 1% increments to minimum hold time of <6ms Christie ArrayLOC – automatic, continuous management of brightness and colour-space levels of all projectors in the array to a common level, in real-time Auto power up Menus in 5 languages
Power Requirements:	Operating voltage: 100-240V AC @ 50/60Hz Operating current: 10A max (lower in normal operational modes) Power dissipation: 2316 BTU/hr max (lower in normal operational modes)
Dimensions:	Dimensions: 400mm x 400mm x 406mm (without lens) Weight: 40kg (without lens) Shipping weight: 80kg (without lens)
Operating Environment:	Temperature: 40-95°F (5-40°C) Humidity: 20-80% non-condensing
Regulatory Approvals:	Directives: (EC) 2002/95/EC (RoHS); 2002/96/EC (WEEE); Regulation (EC) No. 1907/2006 (REACH); CAN/CSA C22.2 No. 60950-1; UL 60950-1; IEC 60950-1; FCC, Part 15, Subpart B, Class A; EN55022/CISPR22 Class A; EN55024/CISPR24; ICEES003 / NMB003 (A) Certifications marks and product approvals (check with Christie for latest update): cULus (Canada & US); CE (EU); CCC (China); GoST-R (Russia); KC (Korea); PSE (Japan); C-Tick (Australia & New Zealand); South Africa; Mexico
Warranty:	Standard Warranty: Two years parts and labour Extended Warranty options available Contact an authorised Christie representative for full details of our limited warranty

¹Each offset is specified with the other at zero. Simultaneous horizontal and vertical offsets may limit the adjustment range of each.
²Christie SIM WQ is available with a Ruggedised Motion Platform Kit. These are purpose built to interface with customer’s motion platform structures and available on a build to order basis. For details, please contact your Christie sales representative.
³For details, please contact your Christie sales representative.
