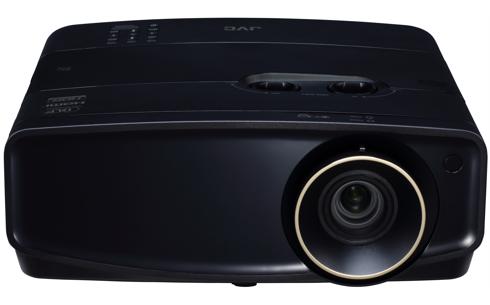

LX-UH1B - 4K HDR DLP projector - Conference / Game / Video Data
Image Devices
Projection Technology DLP
Projection Chip size 0.47 inch
Number of Projection Chips 1
Native Resolution 1920 by 1080 Pixels
Electronic E-Shift Generation Yes
Max Resolution 3840 by 2160 Pixels
Light-Source
Light source technology NSH
Number of Light sources 1 unit
Expecting Lifetime regular mode 4000
Expecting Lifetime save mode 10000
Color Wheel RGBRGB
Light and Contrast
Brightness Typical 2000 ANSI Lumen
Dynamic Contrast 100000 to 1
Color Space REC 709
Lens
Model Name Regular Lens
Description Zoom Lens
Fix Lens Yes
Lens include YES
Zoom Electrical or Mechanical Mechanic Manual
Focus Electrical or Mechanical Mechanic Manual
Aperture ratio F: 1.8 to 0
Focal length f: 14.3mm to 22.9mm
Lens Ratio Factor 1.35:1 to 2.17:1
For Lens Type A: Regular Lens
A) Aperture ratio F: 1.8 to 0
A) Focal length f: 14.3mm to 22.9mm
A) Zoom Electrical or Mechanical mechanical
A) Focus Electrical or Mechanical mechanical
A) Lens Shift Vertical +/-60%
A) Lens Shift Horizontal +/-23%
A) Projection distance Wide to End 2.85 m to 6m
A) Projection distance Tele to End 4.56m to 9.6m
A) Screen Size in inch diagonal 60 inch to 200 inch
Lens Aperture Off / LOW / HIGH
Focus/Zoom Adjustment on internal Test Patterns Yes
Functions
Picture Mode Presets Natural / Cinema / Dynamic / User 1 / User 2
Color Temperature High / Normal / Low / User
Gamma adjust 2,2 Std. 1,8 / 2,0 / 2,1 / 2,2 / 2,3 / 2,4 / 2,6
E-Shift Control OFF/ON
HDR Compatible YES HDR with EOTF
HDR Gamma Hybrid LOG
HDR Picture Mode HLR
Color Management 3D Color Management
Start up Logo YES
Internal Test Patterns YES
Standby Timer Yes
ECO Mode ON/OFF
Projector System Status Screen Yes
Local Projector Control Buttons Yes
Menu Position select Yes
Black/Blue Screen select (in case of no Input source) Yes
Input Signal
Input Signal Capability Special Notes: The Projector supports Auto Search for input devices
PC Input Signal max. 1920 x 1200/60Hz
HDMI Input Signal max. 3840 x 2160
Input Level Adjustment HDMI 0-255 / Limited HDMI 16-235
Input Terminals
RGB Yes, D-SUB 15 PIN
HDMI Yes, 2 x (HDCP2.2 x 1x,HDCP 1.4 x1)
USB Type A for service only
Output Terminals
Trigger Terminal Yes, 1 x (mini jack, DC12V/100mA)
RS-232C Terminal Yes, 9 PIN sub D
Control Terminals
RS-232C Terminal Yes, 1 x System D-sub 9-pin
IR Remote Receivers 2 Front/Back
Power and Environment Spec´s
Noise Level (0-26 degree) 29dB/33dB (ECO/Normal)
Power Requirement AC 100-240V, 50/60Hz
Power Consumption 370 Watts
Power Standby 0,5 Watt
Operation Temperature in Celsius 0C to 40C
Operation Humidity:(Non-Condensing) 10% to 90%
Installation Height 1500m-3000m at 0 degree to 30 degrees
Installation Angle 0
Dimensions W 333 x H 135 x D 332 mm
Weight 4.8 kg
High Altitude Mode see instructions
Include Package
Cord A Power cord
IR Controller Yes
Instruction Handbook Yes
General Editing Note
General Note: Simulated pictures.The values for weight and dimensions are approximate.E.&O.E. Design and specifications subject to change without notice.
