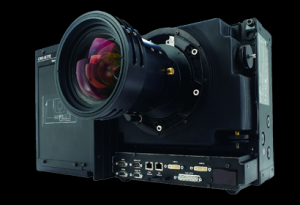

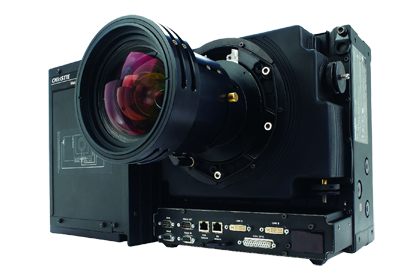

Projektor Matrix StIM™ LED DLP simulation projector 125-001113-XX

dostępność:

producent: Christie

Cena:

Pobierz kartę produktu »

Opis
Dane techniczne
Informacje
W komplecie
Kalkulator projekcji

The Christie Matrix StIM™ LED illuminated simulation projector is a revolutionary new solution for the simulation industry. It’s the first to provide independent control over both the visible and infrared spectrum. It’s the first intelligent projection system to enable real-time balancing of both colour and brightness levels. And it’s the first simulation system designed with solid state illumination – there are no consumables for a virtually maintenance-free system.

Technology	1-chip DLP^®
Resolution	1920 x 1200 WUXGA
Brightness	600 Lumens
Contrast	10,000:1
Illumination	Full Spectrum InfraRGB™ (RGB + IR) LED
Illuminator Life	50,000 hrs MTBF on the illumination system
Height	11" (287mm)
Width	18.4" (467mm)
Depth	8.7" (220mm)
Weight	35lb (15.9kg)

The Christie Matrix StIM is a scalable environment display system that provides the unique capabilities of achieving eyelimiting resolution while stimulating Night Vision Goggles. Designed and engineered with Christie expertise, this system features extraordinarily long life, quality and ease of service. Plus, it’s virtually maintenance free.

Built on an inherently stable long-life platform that doesn’t fade over time, Christie offers a unique lamp-less illumination system for unprecedented stability and reliability. With no consumables, the Christie Matrix StIM provides years of continuous operation. Low power consumption directly translates to lower operating heat, less cooling requirements and cost savings in electricity for a significant reduction in sustainment costs.

Features

Integrated, extraordinarily fast LED illumination for 50,000 hrs MTBF on the illumination of the system
InfraScene™ - unique capability of processing and displaying infrared content for simultaneous display of both visible light and the infrared spectrum
ArrayLOC™ - the continuous management of brightness and color levels of the projectors in the array in real-time, without additional latency
No consumables – no lamps for longer life, longer reliability and lower cost of ownership than traditional lamped projectors
Solid state technology with single DMD™ - provides unmatched picture reliability, filter-free design and no color wheel for high reliability
Increased colour gamut – for more dynamic and realistic rendering of the training environment
Unlimited mounting options – removes restrictions of a lamp for any orientation mounting
Modular architecture – small form factor

The Christie Matrix StIM addresses all the key requirements of the simulation industry in one compact, customer-driven design. Offering the ultimate in simulation visualisation –scalability and an IR LED to actually stimulate NVGs, the Christie Matrix StIM can self-adjust in real-time for a seamless display that accurately depicts day and night scenes and independent stimulated NVG images. The Christie Matrix StIM enables a new level of training by utilising both visible light and IR. Through InfraRGB™ illumination (RGB and IR LEDs) and Christie InfraScene™, the unique capability of processing and displaying infrared content, true-to-life NVG stimulation is achieved for realistic and relevant training for difficult conditions of limited visibility and night time operations.

Brightness:	600 lumens ANSI +/- 10%* *Rated at 75-80% EBU colour space, depending on the lens
Contrast:	10,000:1 dynamic contrast No mechanical iris required
Uniformity:	>95% brightness uniformity after electronic adjustment
Display Technology Type:	Revolutionary solid state projector using a single TI Darkchip 3™ DMD with a solid state illumination engine (no color wheel) and sealed optics.
Native Resolution:	Native 1920 x 1200 (WUXGA)(16:10 aspect ratio)
Inputs:	Signals: Up to 1920 x 1200 WUXGA recommended Dual DVI inputs (standard)
Scan Rates:	Horizontal – 15KHz to 120KHz Vertical – 23.97Hz to 60Hz; and 90Hz to 120Hz
Inputs, Control and Networking:	Dual DVI-D and HD15 analog standard On-board Ethernet control capabilities(ChristieNET™ functionality) Additional Ethernet connections for ArrayLOC™ network IR/wired remote control as part of optional user kit 2 – RS-232 ports and 1 RS-422 port Optional: Analog input card Optional: DVI-I input card Optional: HDSDI input card
Lens Mount:	Mechanical, horizontal and vertical lens shift Tool-less lens insertion system 3 point 60 degree bore sight adjustment No shutter required No iris required - user programmable illumination parameters(eliminates the need for a mechanical shutter)
Illumination:	Full Spectrum InfraRGB™ (RGB + IR) 50,000 hrs MTBF on the illumination system Light module can be changed in 15 minutes and is color and bright level matching in real-time to the projector array
ArrayLOC™:	Manages the brightness and colour space of all projectors within an array to a common level, in real time with no additional latency
Lenses and Lens Offsets:	0.64:1 fixed lens features +/- 5% X (horizontal) and +/- 5% Y (vertical) offset when mounted in landscape orientation 0.75:1 fixed lens features +/- 80% X (horizontal) and +/- 100% Y (vertical) offset when mounted in landscape orientation 1.2-1.6:1 zoom lens features ±80% X (horizontal) and ±100% Y (vertical) offset when mounted in landscape orientation
Standard Accessories:	Line Cord
Optional Accessories:	0.64:1 WUXGA fixed lens 0.75:1 WUXGA fixed lens 1.2-1.6:1 WUXGA zoom lens Analog RGBHV input card DVI-I input card HDSDI input card Remote IR sensor User kit (includes manual, IR remote) Rugged Motion Platform user kit (purpose-built)
Enhanced feature sets:	Minimum Processing Latency (MPL™) Twist II – Advanced warping/edge-blending hardware technology integrated directly into the projector, includes warping/blending software Auto set-up, power up Menus in 5 languages AccuFrame™ adjustable to Multiple channel memories ArrayLOC™ - automatic, continuous management of brightness, color space and black levels of all projectors in the array to a common level, in real-time InfraScene™ - the capability of the simultaneous display of both visible light and infrared projection Dual-Channel Compositing Modes including InfraScene and 120 Hz interleaved mode
Power Requirements:	Operating Voltage: 100-240V AC @ 50/60Hz Operating Current: Estimated max – 5.6A @ 100V AC, 2.8A @ 200V AC Power: 400W maximum (variable, dependant on content) Dissipation: 1364 BTU/hr (max)
Dimensions: Projector Head Module + Light Module (no lens)	Size: 18.4” W x 11.0” H x 8.7” D 467mm W x 287mm H x 220mm D Volume: 1,761 cu in 29,486cm³ Weight: 35 lb (15.9kg) Shipping Weight: 72 lb (32.7kg)
Dimensions: Electronics Module	Size: 5.5” W x 6.7” H x 16.5” D 140mm W x 170mm H x 420mm D Volume: 608.0 cu in 9,963.3cm³ Weight: 9.7 lb (4.4kg) Shipping Weight: 72 lb (32.7kg)
Operating Environment:	Noise: Less than 30dBA estimated (projector head module) Operating Temperature: 40-95°F (5-35°C) Humidity (non condensing): 20-80% non-condensing
Regulatory Approvals:	UL/CSa/IEC 60950-1 EMC-emissions: FCC part 15 and EN55022 (CISPR22) Class A EMC-immunity: EN55024 RoHS compliant
Warranty:	2 years parts and labour
