Specifications (Tentative)

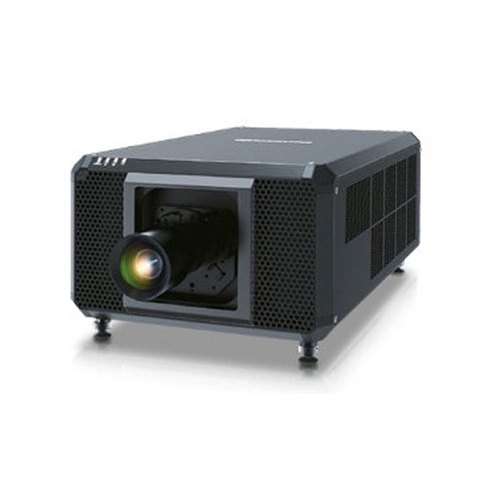

PT-RQ50K
Projector type 3-Chip DLP™ projector
DLP™ chip
Panel size 35.1 mm (1.38 in) diagonal (17:9 aspect ratio)
Display method DLP™ chip x 3, DLP™ projection system
Number of pixels 8,847,360 (4096 x 2160) pixels x 3, total of 26,542,080 pixels
Light source Laser diodes (Blue LD, Red LD)
Light output*1 50,000 lm
Time until light output declines to 50 %*2 20,000 hours (NORMAL)
Resolution Native 4K (4096 x 2160 pixels)
Contrast ratio*1 20,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3)
Screen size (diagonal) 2.54–25.4 m (100–1,000 in) with new optional lens for PT-RQ50K, 17:9 aspect ratio (depending on lens)
Center-to-corner zone ratio*1 TBD
Lens New optional lenses for PT-RQ50K (no lens included with this model)
Lens shift
Vertical
(from center of screen) TBD
Horizontal
(from center of screen) TBD
Keystone correction range TBD
Installation Horizontal/vertical, free 360-degree installation
Terminals
MULTI PROJECTOR SYNC IN BNC x 1
MULTI PROJECTOR SYNC OUT BNC x 1
SERIAL IN D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
SERIAL OUT D-sub 9-pin (male) x 1 for link control
REMOTE 1 IN M3 x 1 for wired remote control
REMOTE 1 OUT M3 x 1 for link control
REMOTE 2 IN D-sub 9-pin (female) x 1 for external control (parallel)
DIGITAL LINK RJ-45 x 1 for network, DIGITAL LINK connection (HDBaseT™ compliant), 100Base-TX, compatible with Art-Net, PJLink™ (Class 2), Deep Color, HDCP 2.2
LAN RJ-45 x 1 for network, 10Base-T/100Base-TX, compatible with Art-Net, PJLink™ (Class 2)
USB USB Connector (Type A) x 1 for Cloning/Wireless Module (output 5 V/2 A)
Expansion Slot 1 Interface Board for 12G-SDI (ET-MDN12G10) supplied
Expansion Slot 2 Optional interface boards, SLOT NX compatible
Power supply AC 200–240 V, 50/60 Hz; AC 100–120 V, 50/60 Hz (Brightness restricted with voltage lower than 200 V)
Power consumption TBD
Cabinet materials Metal (Partly Plastic Mold)
Operation noise*1 TBD
Dimensions (W x H x D) 1,070 x 445 x 720 mm (42 1/8˝ x 17 17/32˝ x 28 17/32˝ )
Weight*3 Under 130 kg (287 lbs)
Operating environment Operating temperature: 0–45 °C (32–113 °F)*4, operating humidity: 10–80 % (no condensation)
Applicable software Logo Transfer Software, Multi Monitoring & Control Software, Geometry Manager Pro, Smart Projector Control for iOS/Android™
