Specyfikacja:

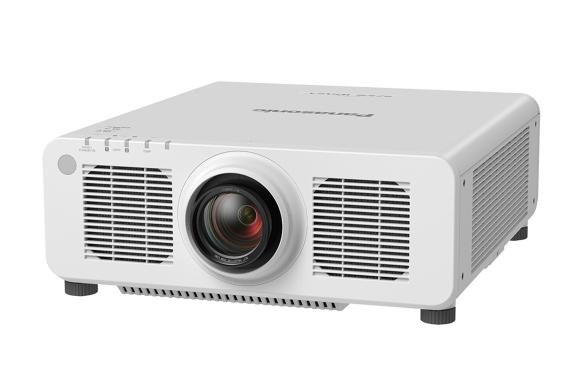

Model PT-RZ120/RZ120L
AC 100–240 V, 50/60 Hz
Power consumption TBD
DLP™ chip 17.0 mm (0.67 in) diagonal (16:10 aspect ratio)
DLP™ chip x 1, DLP™ projection system
Panel size
Display method
Pixels 2,304,000 (1920 x 1200) pixels
Lens PT-RZ120: Powered zoom (throw ratio 1.7–2.4:1), powered focus F 1.7–1.9, f 25.6–35.7 mm
PT-RZ120L: Optional powered zoom/focus lenses
Light source Laser diodes laser Class 1 (Class 3R for US models)
Screen size (diagonal) 1.27–15.24 m (50–600 in), 1.27–5.08 m (50–200 in) with ET-DLE055, 2.54–8.89 m (100–350 in) with ET-DLE030, 16:10 aspect ratio
Center-to-corner uniformity*1 90 %
Brightness*1 12,000 lm
Contrast*1 10,000:1 (Full On/Full Off, Dynamic Contrast Mode: ON)
Resolution 1920 x 1200 pixels
Optical
axis shift*2
Vertical (from center of screen) +50 %, -16 % (+40%, -16% with ET-DLE060) (powered)
Horizontal (from center of screen) +30 %, -10 % (+19%, -10% with ET-DLE060 / +28 %, -10 % with ET-DLE085) (powered)
Keystone correction range Vertical: ±40˚ (±16˚ with ET-DLE060, ±22˚ with ET-DLE085/DLE055, +5˚ with ET-DLE030),
Horizontal: ±15˚ (±10˚ with ET-DLE060) (cannot be operated with ET-DLE030)
Keystone correction range
with optional Upgrade Kit ET-UK20
Vertical: ±45˚ (±16˚ with ET-DLE060, ±40˚ with ET-DLE150/DLE250 / supplied lens, ±22˚ with ET-DLE085/DLE055),
Horizontal: ±40˚ (±10˚ with ET-DLE060, ±15˚ with ET-DLE085/DLE055),
Up to a total of ±55˚ during simultaneous horizontal and vertical correction.
Installation Ceiling/floor, front/rear, free 360-degree installation
Terminals SDI IN BNC x 1: 3G/HD/SD-SDI input
HDMI IN HDMI 19-pin x 1 (Deep Color, compatible with HDCP)
DVI-D IN DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
RGB 1 IN RGB x 1 (BNC x 5): RGB/YPBPR/YCBCR/YC/VIDEO
RGB 2 IN D-sub HD 15-pin (female) x 1: RGB/YPBPR/YCBCR
SERIAL IN D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
SERIAL OUT D-sub 9-pin (male) x 1 for link control
REMOTE 1 IN M3 x 1 for wired remote control
REMOTE 1 OUT M3 x 1 for link control (for wired remote control)
REMOTE 2 IN D-sub 9-pin (female) x 1 for external control (parallel)
LAN RJ-45 x 1 for network connection, 10Base-T, 100Base-TX, compatible with PJLink™ (Class 2)
DIGITAL LINK RJ-45 x 1 for network and DIGITAL LINK connection, 100Base-TX, compatible with PJLink™ (Class 2), HDCP, Deep Color
Operation noise*1 TBD
Cabinet materials Molded plastic
Dimensions (W x H x D) PT-RZ120: 498 x 200*3
x 581 mm (19 19/32˝ x 7 7/8˝ *3
x 22 7/8˝ ) (with supplied lens)
PT-RZ120L: 498 x 200*3
x 538 mm (19 19/32˝ x 7 7/8˝*3
x 21 3/16˝ ) (without lens)
Weight*4 TBD
Operating environment Operating temperature: 0–45 °C (32–113 °F)*5
, operating humidity: 10–80 % (no condensation)
Applicable software Logo Transfer Software, Multi Monitoring & Control Software, Geometry Manager Pro
Fixed-Focus Lens
ET-DLE030
Zoom Lens
ET-DLE085 / ET-DLE150 /
ET-DLE250 / ET-DLE350 /
ET-DLE450 / ET-DLE055 /
ET-DLE060
Geometry Manager Pro Software
Upgrade Kit
ET-UK20
Auto Screen Adjustment Upgrade Kit
ET-CUK10
Early Warning Software
ET-SWA100 Series
DIGITAL LINK Switcher
ET-YFB200G
Digital Interface Box
ET-YFB100G
Ceiling Mount Bracket
ET-PKD130H (6-axis, for high ceiling)
ET-PKD120H (for high ceiling)
ET-PKD120S (for low ceiling)
Projector Mount Bracket
ET-PKD130B
Note: PT-RZ120L offers the same performance as PT-RZ120, but comes without a lens.
*1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped. *2 Optical axis shift is not supported on the ET-DLE055, and the optical axis is fixed with the ET-DLE030.
*3 With legs at shortest position. *4 Average value. May differ depending on the actual unit. *5 When using the projector at an altitude lower than 2,700 m (8,858 ft) above sea level, and the operating environment temperature becomes 30 ˚C (86 ˚F) or higher, the light output may be
reduced to protect the projector. When using the projector at an altitude between 2,700 m (8,858 ft) and 4,200 m (13,780 ft), and the operating environment temperature becomes 25 ˚C (77 ˚F) or higher, the light output may be reduced to protect the projector.
