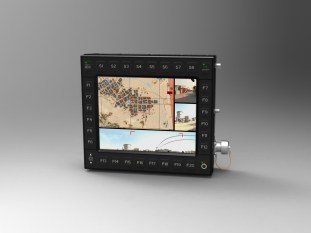

Panel size |
10.4" diagonal, 4:3 aspect ratio |
Resolution |
1024 x 768 (XGA) |
Color depth |
6 bits/color
8 bits/color with patented dithering algorithm |
Brightness |
Day mode: min. 340cd/m² / 100fL
Night Node: max 3.43cd/m² / 1.0fL, dimmable to black |
Contrast ratio |
900:1 (dark environment) |
Dimming ratio |
Typ. > 200:1 |
HMI |
4 control keys
32 function keys
Rugged AR high-resolution touch screen |
Computing |
Intel® Dual-Core™ i3-3120ME, 2x 2.4GHz, 8GB RAM |
Graphics card |
Integrated Intel® HD Graphics 4000 |
Storage capacity |
128GB Field Removable SSD, SATA 3.1 compliant (6Gb/sec) |
Inputs - Outputs |
1x Intel PRO1000 Gigabit Ethernet port
4x USB 2.0
4x serial lines (RS232/RS422/RS485)
2x CAN bus (ISO 11898, CAN 2.0 A/B, and J1939 compliant)
HD audio in/out/micro
4x video inputs RS170, PAL/NTSC
4x GPIO + PTT
I/O isolated or buffered as applicable |
Option slots |
1x MXM
1x XMC
4x miniPCIe |
Operating system |
Microsoft Windows 7 Ultimate for Embedded Systems, 64-bit |
Power Supply |
MIL-STD-1275D compliant |
Power consumption |
Power consumption 50W typ., 80W max (without heaters) |
Dimensions |
286 x 254 x 68 mm / 11.25” x 10.0” x 2.66” (w x h x d) |
Weight |
5.9 kg / 13 lbs |
Environmental |
(MIL-STD-810G)
Operating temperature: -46 to +65 °C (+71°C with limitations)
Storage temperature: -51 to +71 °C
Humidity: 95%, 60 °C
Altitude: 40,000ft operating, 50,000ft non-operating
Salt fog: 48-hours, 5% concentration
Sand and dust: blowing sand/dust
Ingress protection: 1 meter immersion for 30 minutes
Vibration: Tracked Vehicle profile
Shock: 40g, 23ms (6 shocks/axis) |
EMI / EMC |
(MIL-STD 461F)
Ground army |
High brightness |
Up to 680cd/m² / 200fL |
Rugged front filter (replaces touch screen) |
Chemically-strengthened glass
Front (optical) bonding
Highly Efficient (HE) Anti-Reflective (AR) coating |
CPU and memory upgrade |
Intel® Dual-Core™ i7-3555LE, 2x 2.5GHz, 16GB RAM |
Graphics upgrade |
AMD® MXM E6760 GPU |
Storage upgrade |
256GB Field Removable SSD, SATA 3.1 compliant (6Gb/sec) |
Barco Video XMC Board (VXB) |
4x PAL/NTSC Video
1x RGB Input
2x HD-SDI Inputs
1x Gigabit Ethernet (GigE Vision or DEF-STAN 00-82 streaming)
Gen-locking
Real-Time video input to screen |
Dual GigE miniPCIe |
2x Intel PRO1000 Gigabit Ethernet ports |
Operating systems |
Microsoft Windows XP, 32-bit
RedHat Linux Enterprise Linux 6.x, 64-bit |
Barco CommonSENSE Advanced |
Includes advanced image processing functions such as fusion, stabilization, and warping (lens correction) |
Real-time clock battery |
Battery and Battery Holder |
Stylus kit |
Stylus, Holder, Tether |
Rugged keyboard |
Includes integrated pointing device |
