TL-248/2 19" Thin Lightweight display (1280 x 1024)

dostępność:

Cena:

Pobierz kartę produktu »

Opis
Dane techniczne
Informacje
W komplecie
Kalkulator projekcji

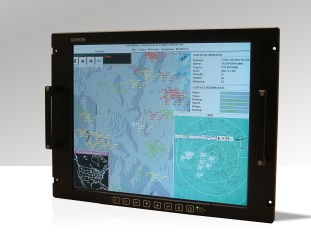

The TL-248/2 is Barco’s second-generation 19" thin and lightweight rugged display combining unmatched thinness with exceptionally low weight.

Next-generation technologies

Barco's TL-248/2 offers the same form-fit-function as its predecessor, Barco's TL-248. The revamped model includes the latest innovations in electronics, inputs/outputs, video processing and touch technology.

The TL-248/2 features a first-class 19" SXGA LCD with LED backlight offering excellent performance in terms of brightness, crispness, dimming, contrast and viewing angle.

Several options and bezel configurations are available to address virtually any mounting need in any application. Additionally, the TL-248/2 combines this high level of performance and versatility with a very competitive price/performance value.

Barco's TL displays have been designed for application in the most extreme environments, making them suited for naval combat, army, UAV and airborne applications.

Features

Thin
The thin footprint of the TL series allows easy integration into systems and platforms where space is limited.
Light
The TL displays have an exceptionally low weight in combination with a high level of ruggedization. This allows for major savings in applications where weight is critical (e.g. airborne).
Best price/performance value
The TL series provides the best price/performance value on the market, allowing integrators to develop very competitive visualization solutions for their customers at a cost which is fully in line with their program requirements.
Versatile
Barco’s TL series is truly the most versatile display solution around, in terms of size, ruggedness and mountability. Two levels of ruggedization allow integrators to choose the TL display that meets their specific program requirements. All displays come as a fully enclosed, dripproof unit.

Panel size

19”

Resolution

1280x1024 (SXGA)

Brightness

Typical 250 cd/m² (72.5 fL)

Backlight

LED

Contrast ratio

Typical 900:1

Vibration

	Standard	Rugged option
SHIPS	MIL-STD-167-1 Type 1	MIL-STD-167-1 Type 1
AIRBORN	2g MIL-E-5400T Fig.2, curve IIa (sheet 2 of 3)	5g MIL-E-5400T Fig.3, curve IIIa (sheet 2 of 3)
RANDOM		MIL-STD-810F Meth 514.5 Proc l, comp. wheeled vehicle (C2 & C3)

Shock

Standard	Rugged option (designed to meet)
MIL-STD-810F	MIL-STD-901D / MIL-STD-810F
Meth. 516.5	Lightweight / Meth. 516.5
30g - 12.5ms Half sine - X,Y,Z axis	Grade A / 40g - 16ms half sine

Operational temperature

Standard	Rugged option
Low temp: -10°C (immediate usable image at power up, image fully compliant with specs after 30 minutes)
Low temp: 0°C	Low temp: -40°C
High temp: +50°C	High temp: +55°C

Storage temperature

Standard	Rugged option
Low temp: -40°C	Low temp: -40°C
High temp: +70°C	High temp: +70°C

Relative humidity

Standard	Rugged option
max. 95% @ 40°C	max. 95% @ 40°C

Ingress protection

Standard	Rugged option
IP65 on display front	IP65 on unit level with optional circular MIL connectors

Drip proof

Standard	Rugged option
MIL-STD-810F meth. 506.4 proc III	MIL-STD-810F meth. 506.4 proc III

Altitude low pressure

Standard	Rugged option
40000ft (187 mbar)	40000ft (187 mbar)

Rapid decompression

Standard	Rugged option
NA	MIL-STD-810F Meth 500.4, Proc III 8000 ft to 40000 ft in 15s

EMI / EMC

Standard	Rugged option
MIL-STD-461 F - NAVY Applications	MIL-STD-461 F - NAVY Applications / MIL-STD-461 F - Navy fixed and Airforce Applications

FCC

Standard	Rugged option
FCC-A	FCC-A

Signal inputs

2 x DVI, VGA, HD-SDI

RS-232 serial port

9 pin sub D

Power

9W4 sub D or circular MIL-38999 for AC

Controls

UP / DOWN / SEL / QUIT / STANDBY / INPUT selection / F1/F2

In conjunction with OSD

Indicators

Green ‘Power’ LED, Red ‘Fault’ LED

OSD

On-Screen Display & web interface

Power Supply

28V DC or 115-220V AC

Guidelines

MIL-STD-704E and MIL-STD-1275D

Power consumption

45W typical

Weight

+/- 7.5 kg

Finishing

Black RAL 9005

MTTR

Less than 30 minutes

Scaling modes

No scaling/full screen/keep aspect/upscaled/downscaled
AutoSet, Automatic Phase Adjust (APA), Automatic Gain Control (AGC)

Options

LCD Flicker Compensation
Touch screen
Circular MIL connector interface
